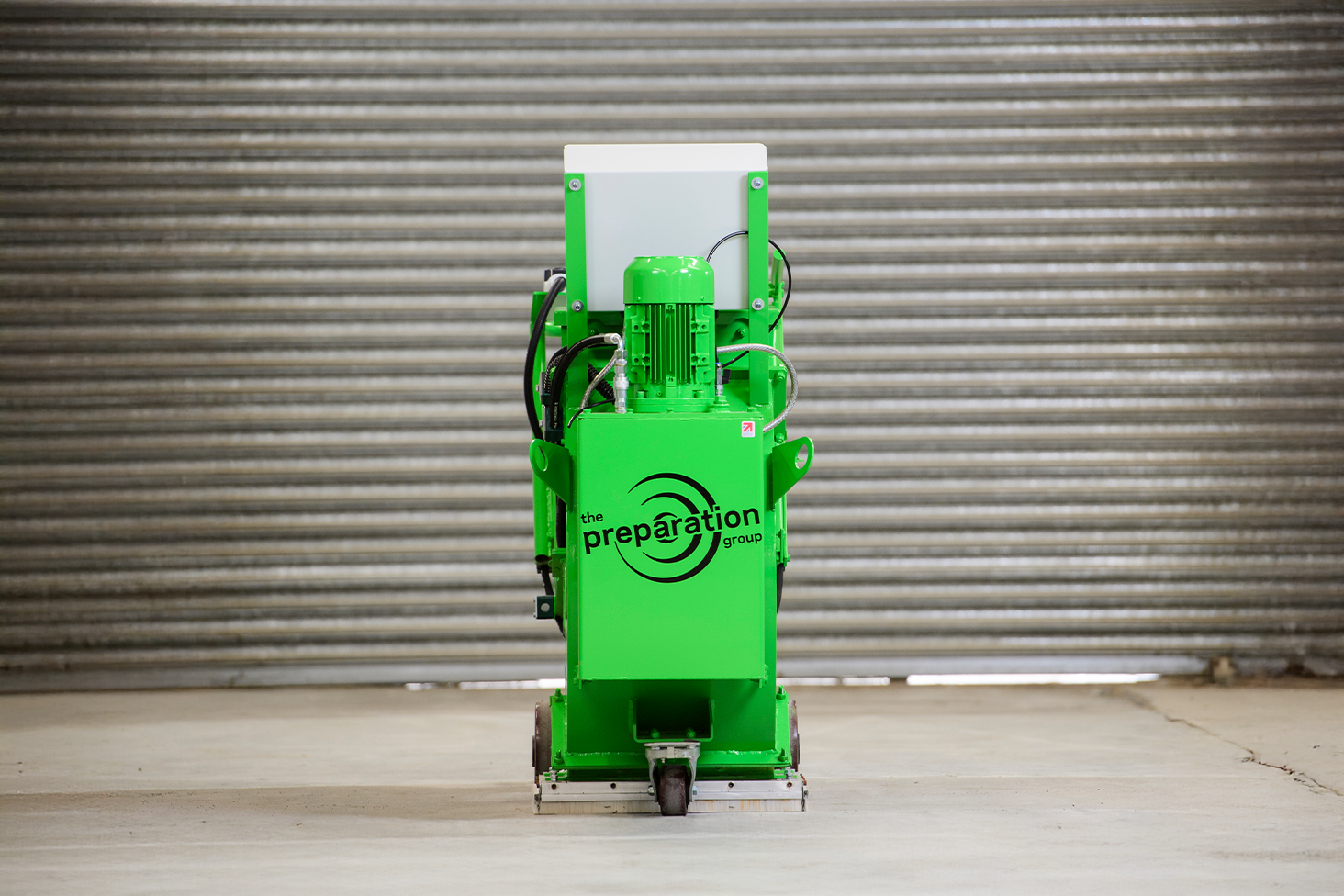

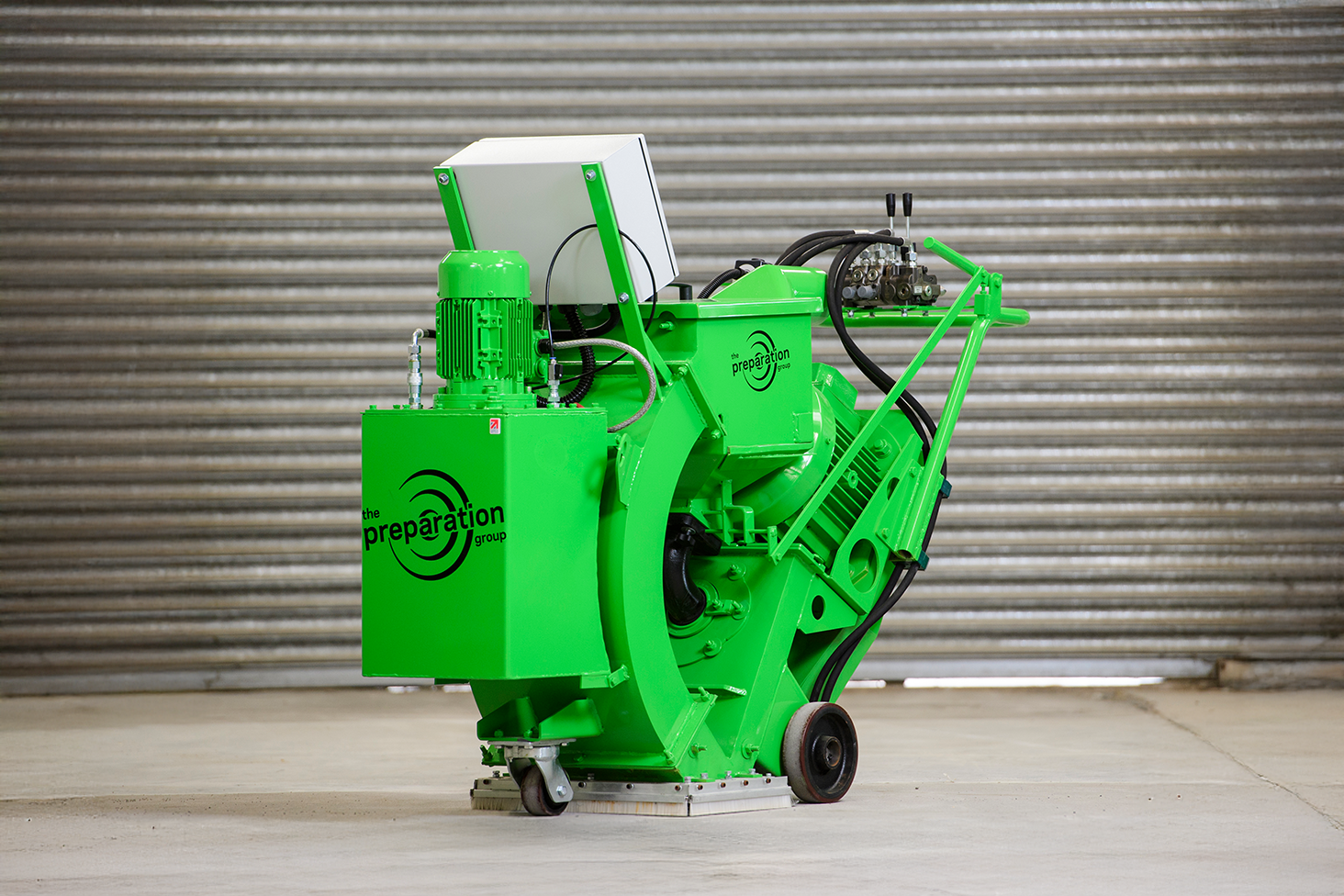

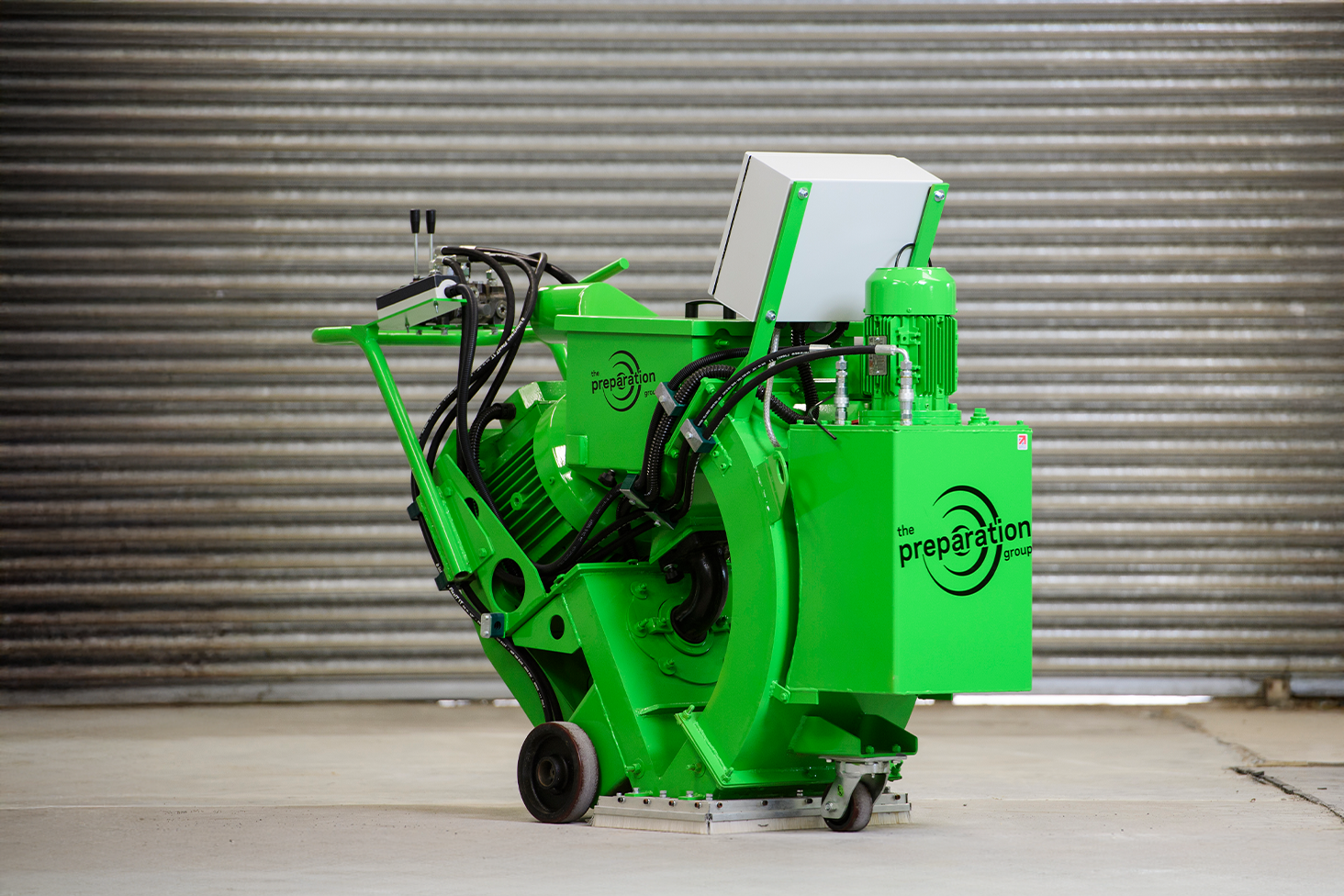

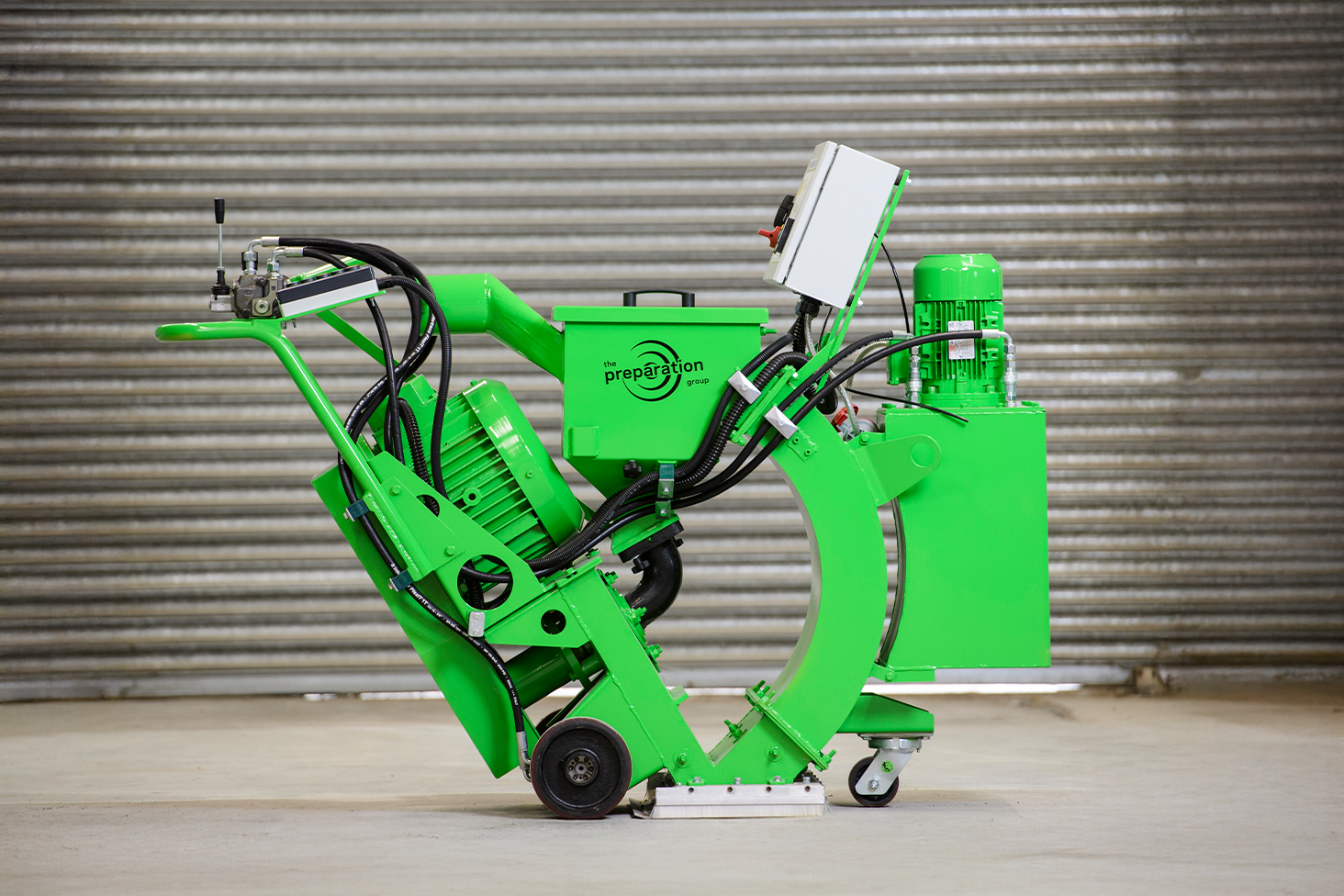

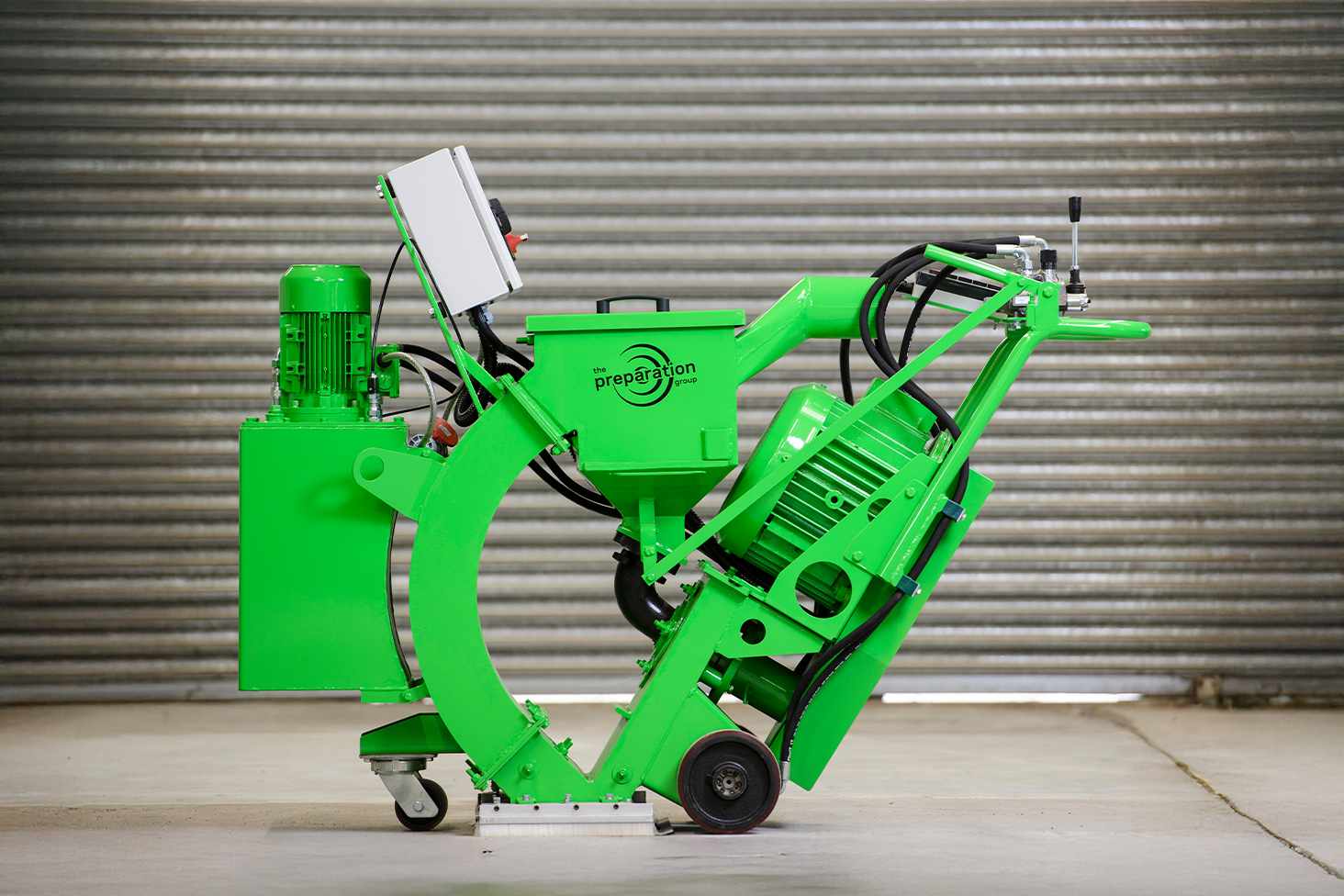

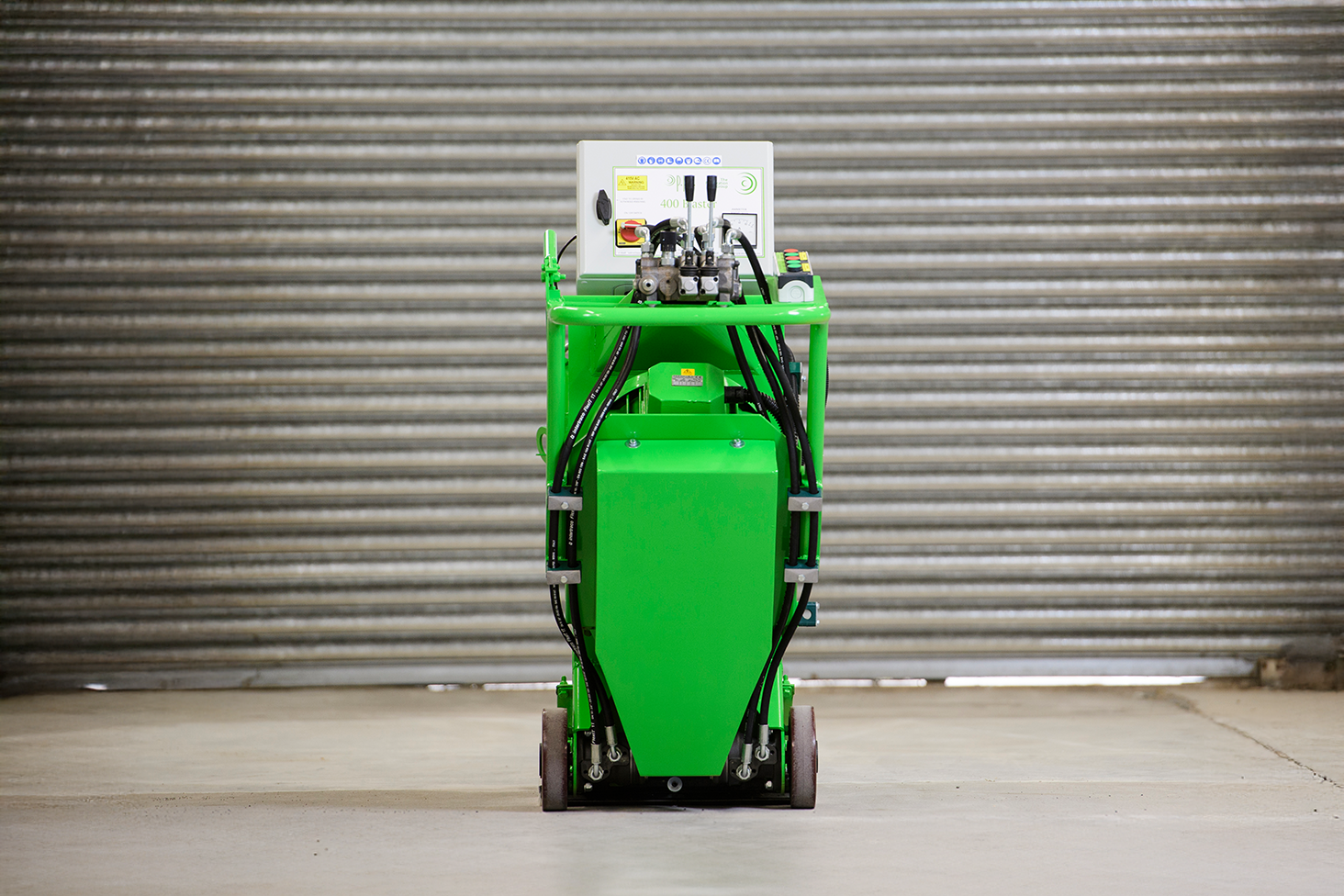

PPC 400 Shotblaster

The PPC 400 Shotblaster is a high performance, precision blasting machine purpose-built for specialist environments where access is limited and quality results are non negotiable. Designed to be dismantled in three easy steps, it’s the ideal solution for preparing steel inside tanks and vessels, removing heavy contamination and achieving SA2½ standards with ease.

BLAST400-001

PPC 400 Shotblaster BLAST400-001

PPC 400 Shotblaster BLAST400-001

Overview:

Engineered for Confined Access

Modular design allows for quick disassembly and reassembly in tight areas such as tanks and chambers.

Powerful & Precise

15kW motor delivers uniform blasting over a 400mm width, perfect for removing crud, coatings, corrosion. Laitance and retexturing,

Built for Big Jobs

Robust 540kg manganese steel construction, ideal for medium to large-scale industrial and infrastructure projects.

Industrial-Grade Performance

Prepares steel to SA2½ standard, with consistent results across medium to large-scale industrial surfaces.

Quick-Change Tuning Kit

Swap settings in minutes for rapid adaptation to different surfaces or blasting profiles.

Safe & Operator-Friendly

Low HAV (2.8m/s²) and 95dB(A) noise level ensure compliance and operator comfort.

Dust Extraction Required

Pairs with our 3-Filter Dust Collector Unit for clean, safe operation in enclosed or sensitive environments.

Data Sheet

Model:

PPC 400 Shotblaster

Power Supply:

415v/3 Phase/63amp

Working Width:

400mm

Dimensions:

1270mm x 1880mm x 570mm

Weight:

540kg

Motor:

15 kW

Noise Level:

95 dB(A)

Hand-Arm Vibration:

2.8 m/s² r.m.s

Maximum use Time:
(regular breaks should be taken)

Up to 7 hours*

Applications

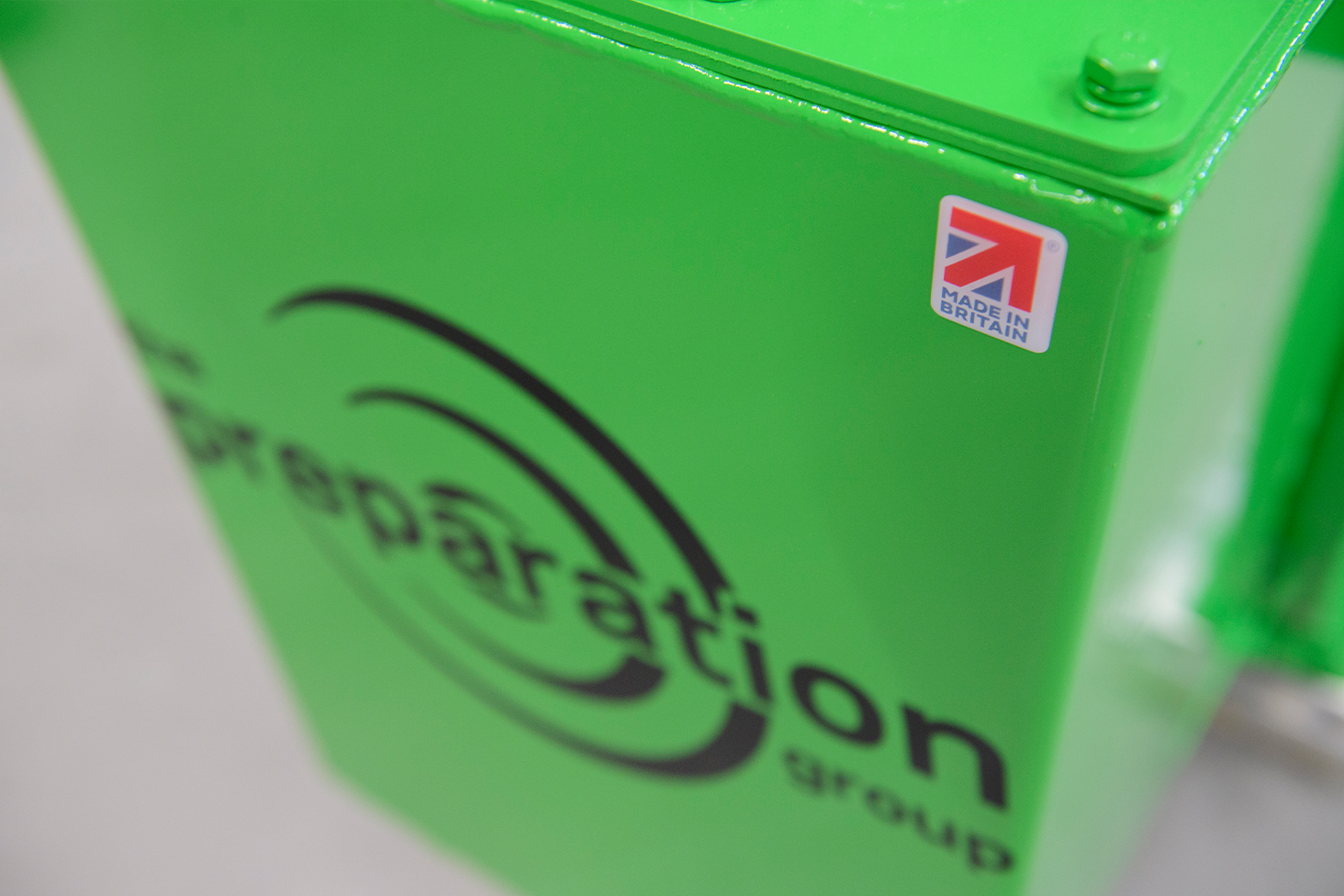

From tank interiors to structural steel and beyond, the PPC 400 Shotblaster brings industrial power and contractor-tested versatility—British-built for specialist prep, when precision matters most. The professional’s choice for demanding projects like ship decks, steel platforms, bridge decks, helipads, and large concrete surfaces, including:

Videos

Compatible Items

415v 63amp Extension Cable

ELEC-025

5 pin plug and socket 10mm x 25m (4 Core).

Hose

DUCTING-009

125mm Clear PU Ducting is used to connect the dust extractor to equipment. Stronger and longer lasting than PVC economy hose. More resilient to temperature changes and less prone to splitting.

Magnetic Sweeper

SWEEPER-001

The PPC magnetic sweeper recaptures steel abrasive after the shotblasting process –
retrieval is an incredible 6 times faster than with a broom or vacuum.

390 Shot 25kg

SHOT0390

1.0 – 1.4mm Double bagged for easy handling. More aggressive than 330 grade and is more commonly used to clean and texture background surfaces prior to applying coatings and sealants.

460 Shot 25kg

SHOT0460

1.2 – 1.7mm Double bagged for easy handling. Selected for its cleaning properties on concrete, asphalt, and tiled surfaces providing a light-medium profile ideal for applications of self levelling systems and screeds. 460 grade cleans and textures coated surfaces; it is ideal for preparing bridge decks and roads for surface dressings and waterproof systems.

550 Shot 25kg

SHOT0550

1.4 – 2.0mm Double bagged for easy handling. Used for similar applications to 460 grade, but slightly more aggressive and rougher in profile.

Tuning Kit

BLAST-018

Made from high grade materials, proven to last 50% longer than competitors and on our Shotblasters they are quick to change with no dismantling of the machine.

Side Liner

LEFT BLAST-035 / RIGHT BLAST-016

Manufactured from high grade materials, they last 50% longer than competitors and are changed in minutes when used with our Shotblasting machines.

Top Liner

BLAST-070

Manufactured from high grade materials, they last 50% longer than competitors and are changed in minutes when used with our Shotblasting machines.

Side Brush

BLAST265-024

Creates a seal against the floor at the sides of the Shotblaster to ensure dust is contained ready for extraction.

SPARES ARE AVAILABLE FOR GENERAL MAINTENANCE AND REPAIRS IF REQUIRED.
