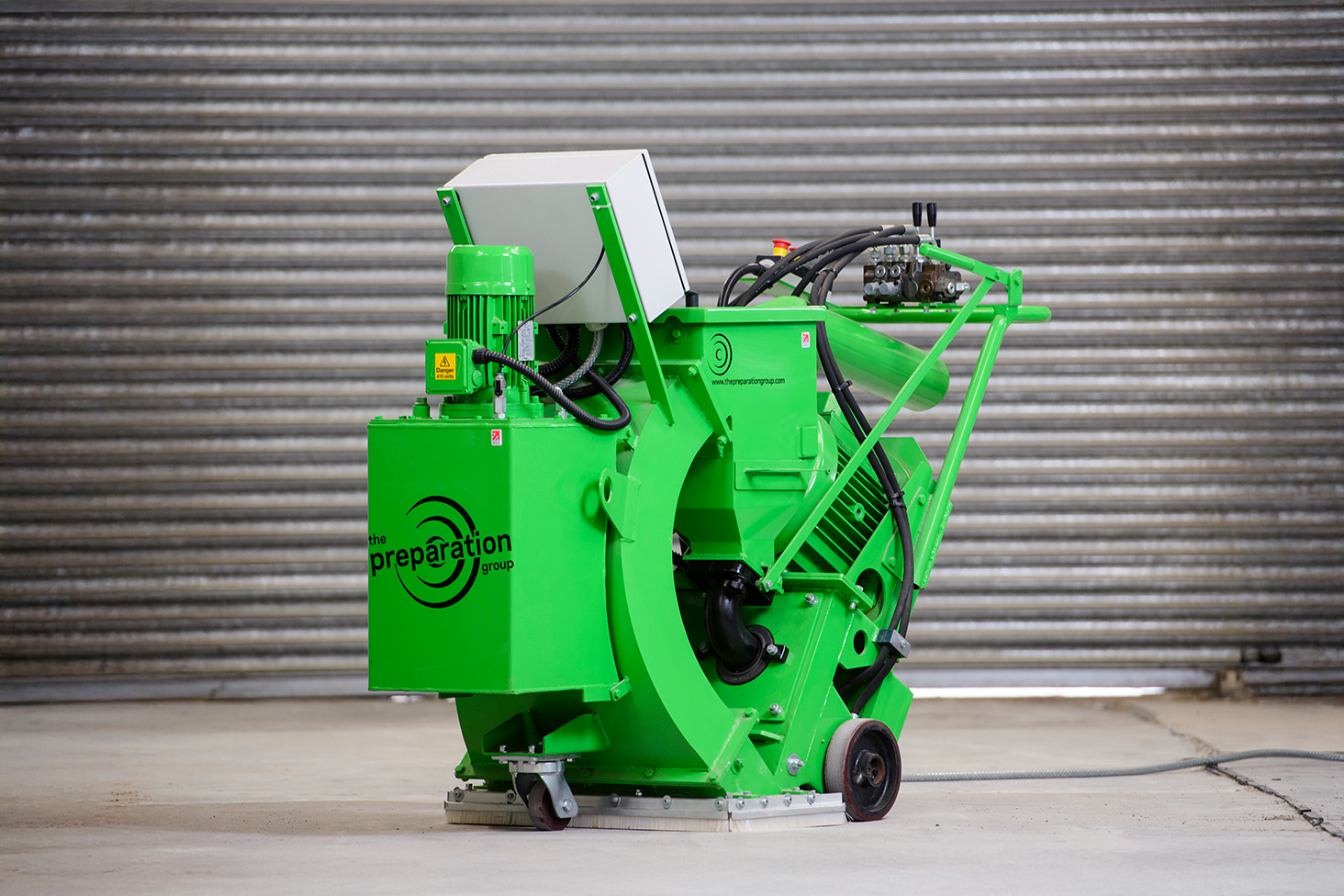

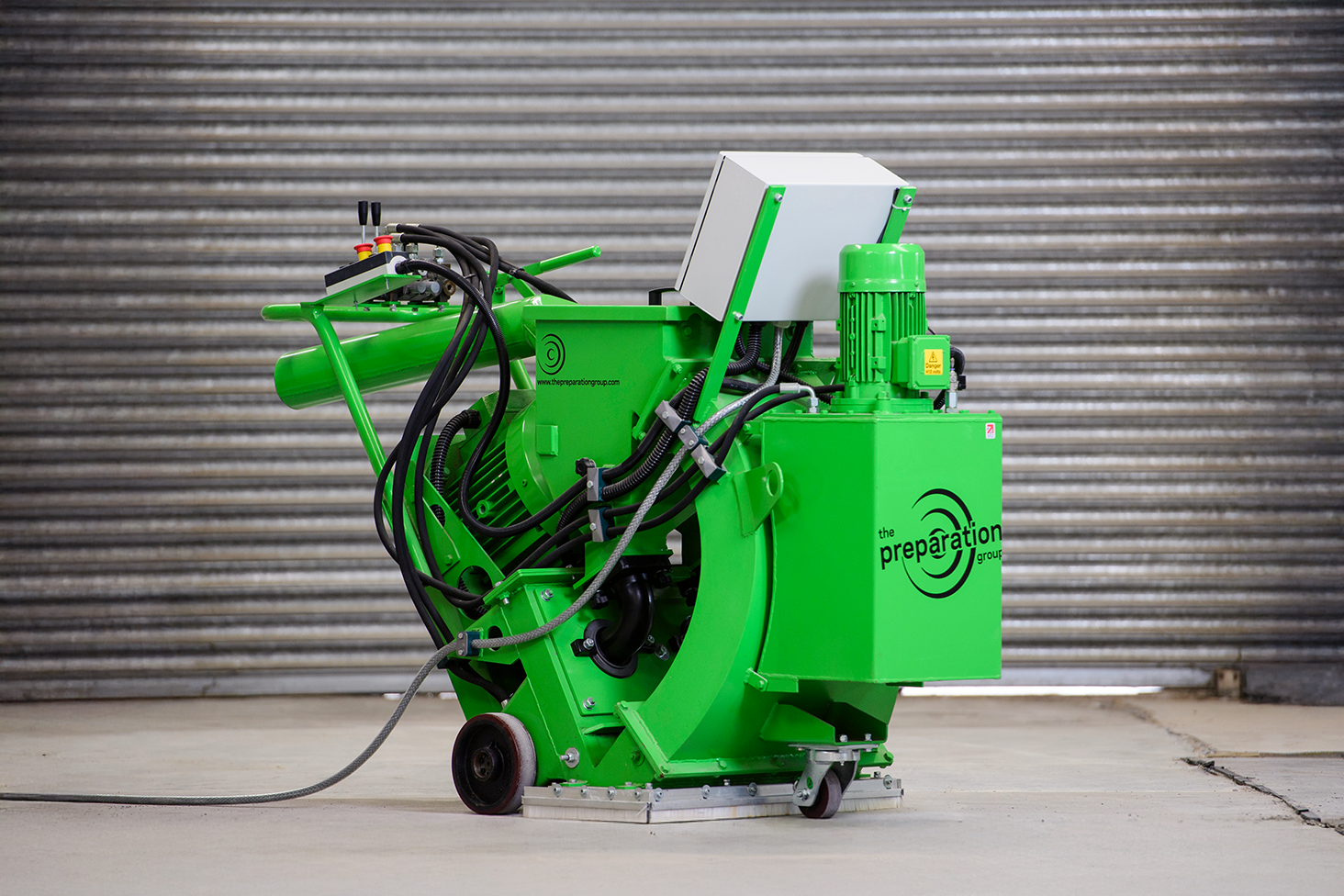

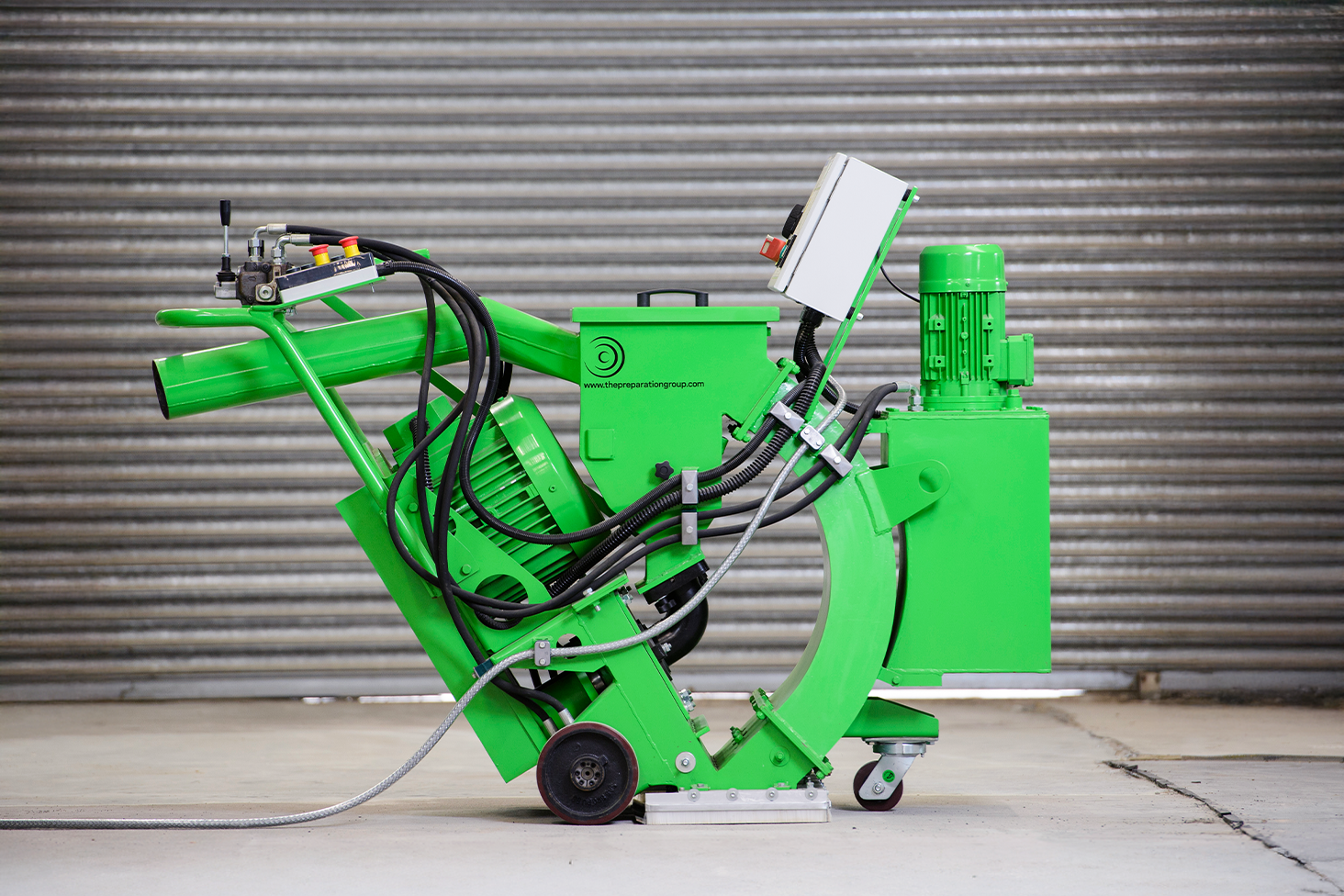

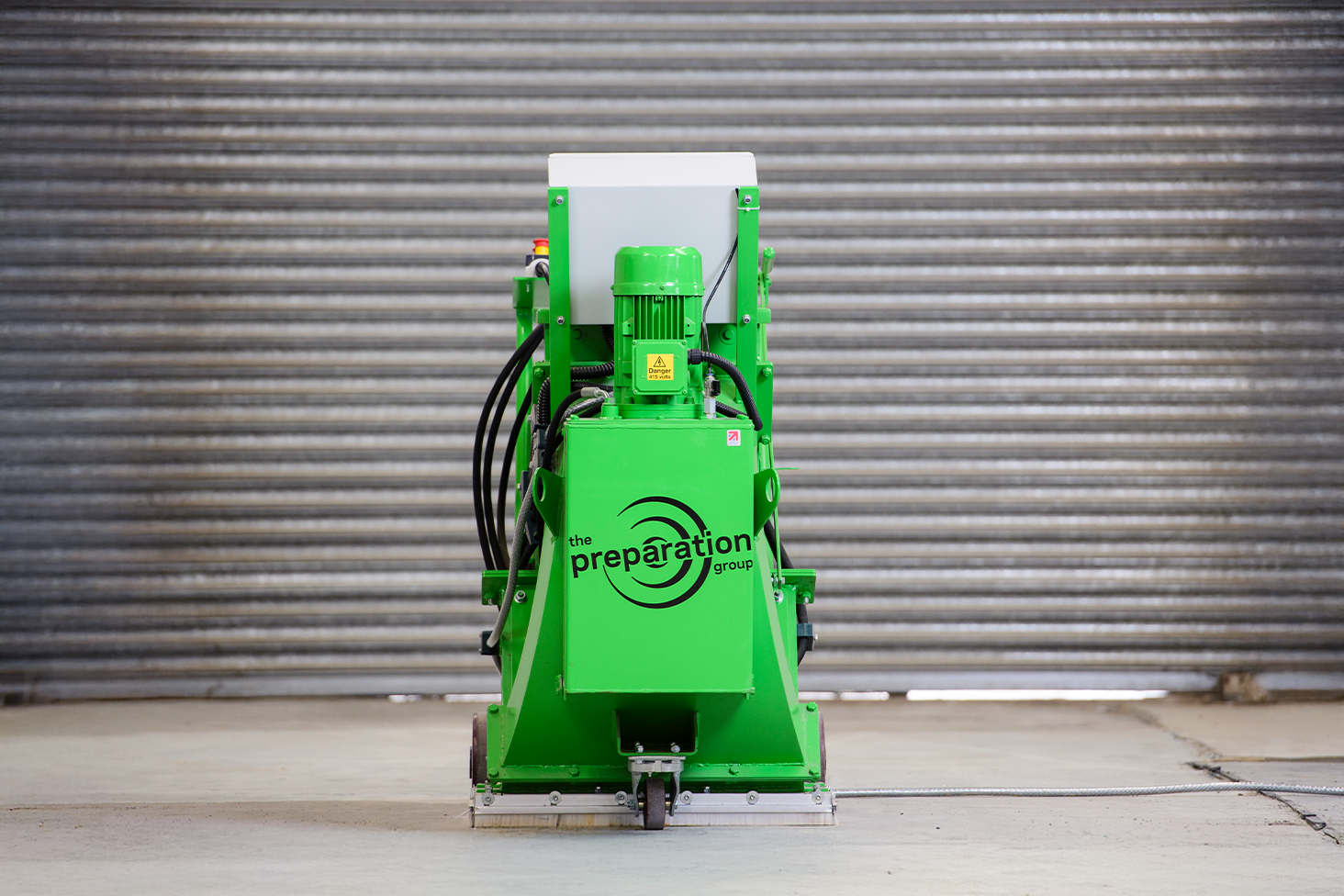

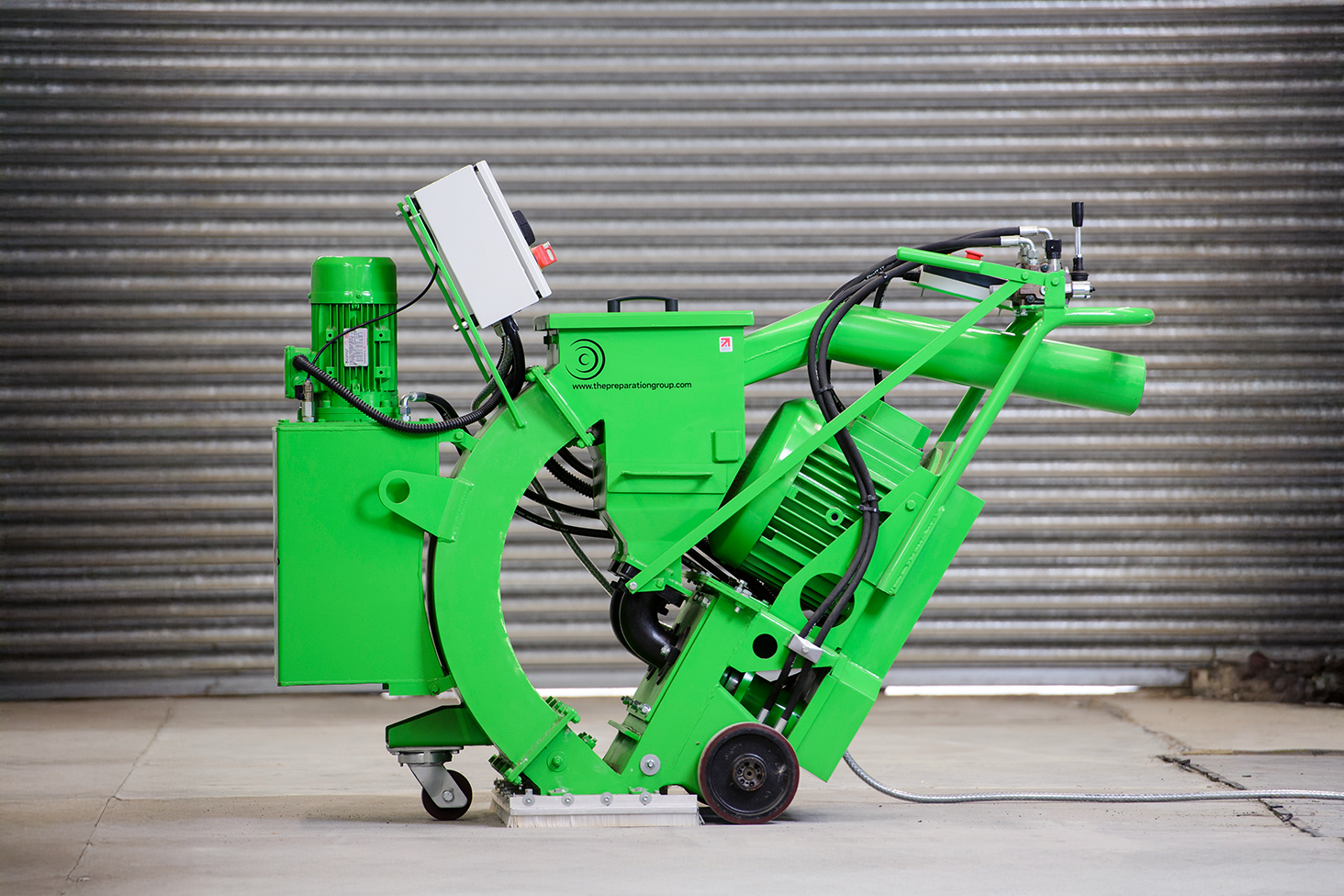

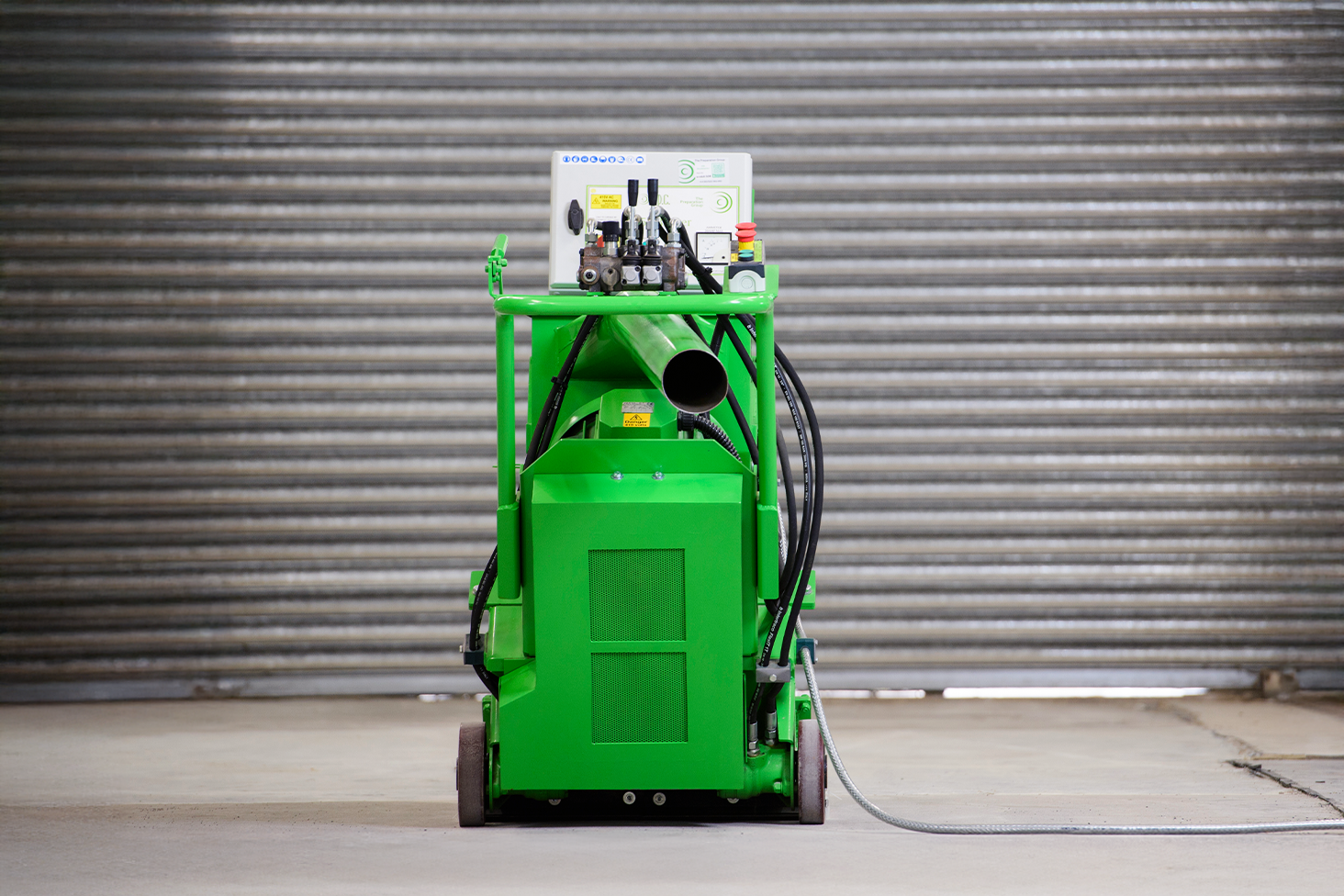

PPC 558 Shotblaster

The PPC 558 Shotblaster is our high-capacity, continuous shotblasting solution, built for large-scale industrial projects where maximum output and efficiency are essential. With a wide 558mm blast path and powered by a 22kw motor, it’s the professional choice for preparing bridge decks, highways, airport runways, and expansive concrete, asphalt or steel surfaces, plus Anti-slip profiles on roads and public areas.

BLAST558-001

PPC 558 Shotblaster BLAST558-001

PPC 558 Shotblaster BLAST558-001

Overview:

Maximum Coverage, Minimal Passes

Extra-wide 558mm blasting width ensures faster results on large surfaces.

Powerful Industrial Motor

Delivers consistent, aggressive surface removal for demanding applications including SA2½ steel prep and heavy-duty coating removal.

Built for Continuous Operation

Engineered for extended run times with durable components and high-capacity shot management.

Heavy-Duty Construction

Rigid, reinforced chassis handles tough environments with low vibration and reliable operator comfort.

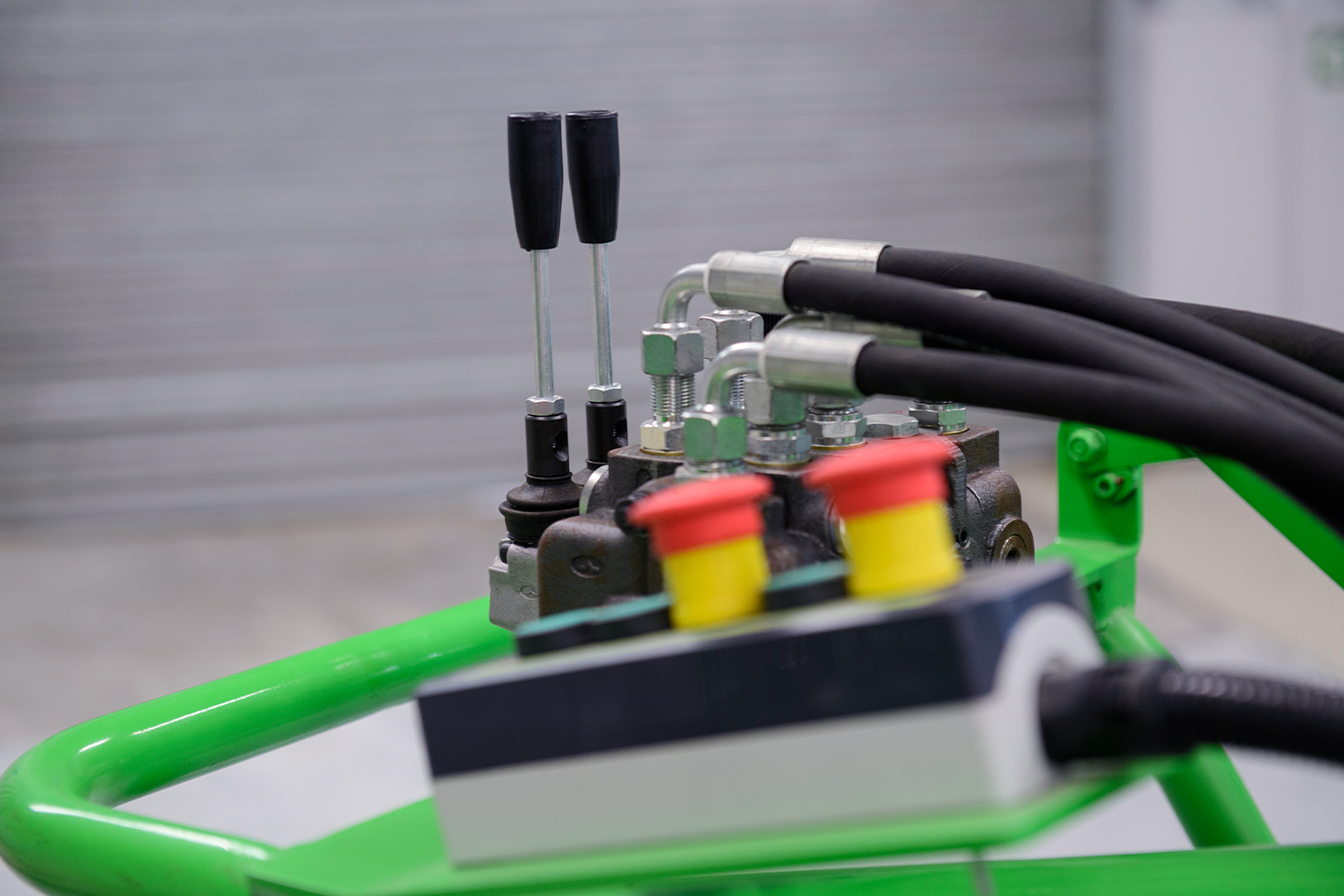

Easy Use

Simple controls and low maintenance.

Dust Extraction Required

Designed for use with our 3-Filter Dust Collector Unit, ensuring clean, compliant operation in all environments.

Data Sheet

Model:

PPC 558 Shotblaster

Power Supply:

415v/3 Phase/63amp

Working Width:

558mm

Dimensions:

1350mm x 1750mm x750mm

Weight:

650kg

Motor:

11 kW

Noise Level:

95 dB(A)

Hand-Arm Vibration:

2.8 m/s² r.m.s

Maximum use Time:
(regular breaks should be taken)

Up to 7 hours*

Applications

When speed, scale, and surface quality are critical, the PPC 558 Shotblaster delivers industrial-grade results—British-built, contractor-trusted, and ready for the toughest jobs, including:

Videos

Compatible Items

415V 63amp Extension Cable

ELEC-025

5 pin plug and socket 10mm x 25m (4 Core).

Hose

DUCTING-009

125mm Clear PU Ducting is used to connect the dust extractor to equipment. Stronger and longer lasting than PVC economy hose. More resilient to temperature changes and less prone to splitting.

Magnetic Sweeper

SWEEPER-001

The PPC magnetic sweeper recaptures steel abrasive after the shotblasting process –
retrieval is an incredible 6 times faster than with a broom or vacuum.

390 Shot 25kg

SHOT0390

1.0 – 1.4mm Double bagged for easy handling. More aggressive than 330 grade and is more commonly used to clean and texture background surfaces prior to applying coatings and sealants.

460 Shot 25kg

SHOT0460

1.2 – 1.7mm Double bagged for easy handling. Selected for its cleaning properties on concrete, asphalt, and tiled surfaces providing a light-medium profile ideal for applications of self levelling systems and screeds. 460 grade cleans and textures coated surfaces; it is ideal for preparing bridge decks and roads for surface dressings and waterproof systems.

550 Shot 25kg

SHOT0550

1.4 – 2.0mm Double bagged for easy handling. Used for similar applications to 460 grade, but slightly more aggressive and rougher in profile.

Tuning Kit

BLAST-018

Made from high grade materials, proven to last 50% longer than competitors and on our Shotblasters they are quick to change with no dismantling of the machine.

Side Liner

LEFT BLAST-035 / RIGHT BLAST-016

Manufactured from high grade materials, they last 50% longer than competitors and are changed in minutes when used with our Shotblasting machines.

Top Liner

BLAST-070

Manufactured from high grade materials, they last 50% longer than competitors and are changed in minutes when used with our Shotblasting machines.

Side Brush

BLAST265-024

Creates a seal against the floor at the sides of the Shotblaster to ensure dust is contained ready for extraction.

SPARES ARE AVAILABLE FOR GENERAL MAINTENANCE AND REPAIRS IF REQUIRED.
