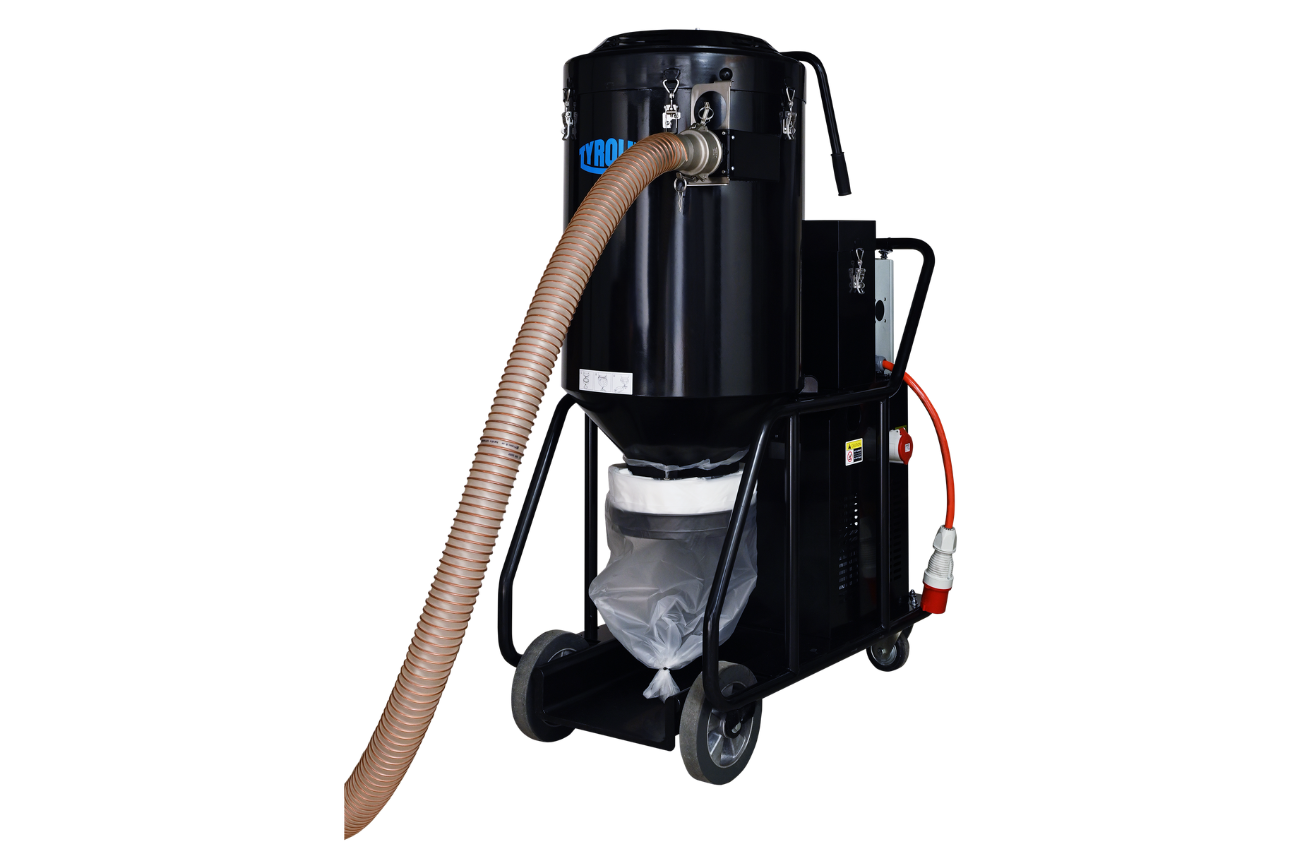

PPC Tyrolit VCE7500D Vacuum

High-performance dust extraction for demanding jobs.
The PPC VCE7500D extraction system combines exceptional airflow and vacuum power with an integrated pre-separator for efficient dust control.
Using advanced cyclone technology, a pre-separator, 15 pre-filters, and two HEPA filters, it ensures clean, safe working conditions even with larger equipment.

Call Us, 01522 561460

PPC Tyrolit VCE7500D Vacuum TYRVAC7500-001

Overview
Data Sheet
Applications
Compatible Items
PPE

Overview:

Its robust design makes the VCE7500D ideal for tough construction environments, while non-marking wheels provide easy mobility without damaging floors—delivering reliability, performance, and versatility wherever it’s needed.

Longopac® Safe Bagging System

23m continuous bag allows collected dust to be sealed in manageable sections for safe and hygienic disposal.

Supplied with H13 H-Class filter as standard

suitable for hazardous dust environments.

Data Sheet

Model:	PPC TYROLIT VCE7500D VACUUM
Power Supply:	415v 50Hz
Motor:	7.5 kW
Dimensions:	1680mm (H) x 1163mm (L) x 657mm (W)
Weight:	235kg
Air Flow:	700 m³/hour
Noise Level:	74 dB(A)
Max. Vacuum:	270 mbar

Applications

For powerful dry dust extraction with secure, compliant disposal, is the professional’s choice.

Dust & Debris

Use with Pre-Separator

Compatible Items

415v 32amp Extension Cable

ELEC-023

25m complete with fitted plug and socket.

Hose

DUCTING-007

50mm Clear PU Heavy Duty Antistatic Ducting is used to connect the dust extractor to equipment. Stronger and longer lasting than PVC hose.

Nozzle

VAC-008

430mm long with 2 bristle strips and two adjustable wheels make it easy to move around.

Wand

VAC-007

Wands are chrome plated ‘s’ tubes for when the dust extractor or vacuum is used in isolation.

Longopac Bags

VAC-09

Super-strong Longopac© Feeding Bags (Box of 4no x 23m) 360mm.

Connector

VAC-013 / VAC-014

Machine to Hose Connector available in 80mm-50mm or 80mm-70mm

Rubber Cones

40mm VAC-020 / 50mm VAC-019

Cone/Crevice Tool. Available in 40mm or 50mm.

Y Piece Connector

VAC-029

Enables the user to connect 2 x 50mm hose segments to the M450 Vacuum. 80/50/50.

SPARES ARE AVAILABLE FOR GENERAL MAINTENANCE AND REPAIRS IF REQUIRED.

Spares are available for general maintenance and repairs if required.
