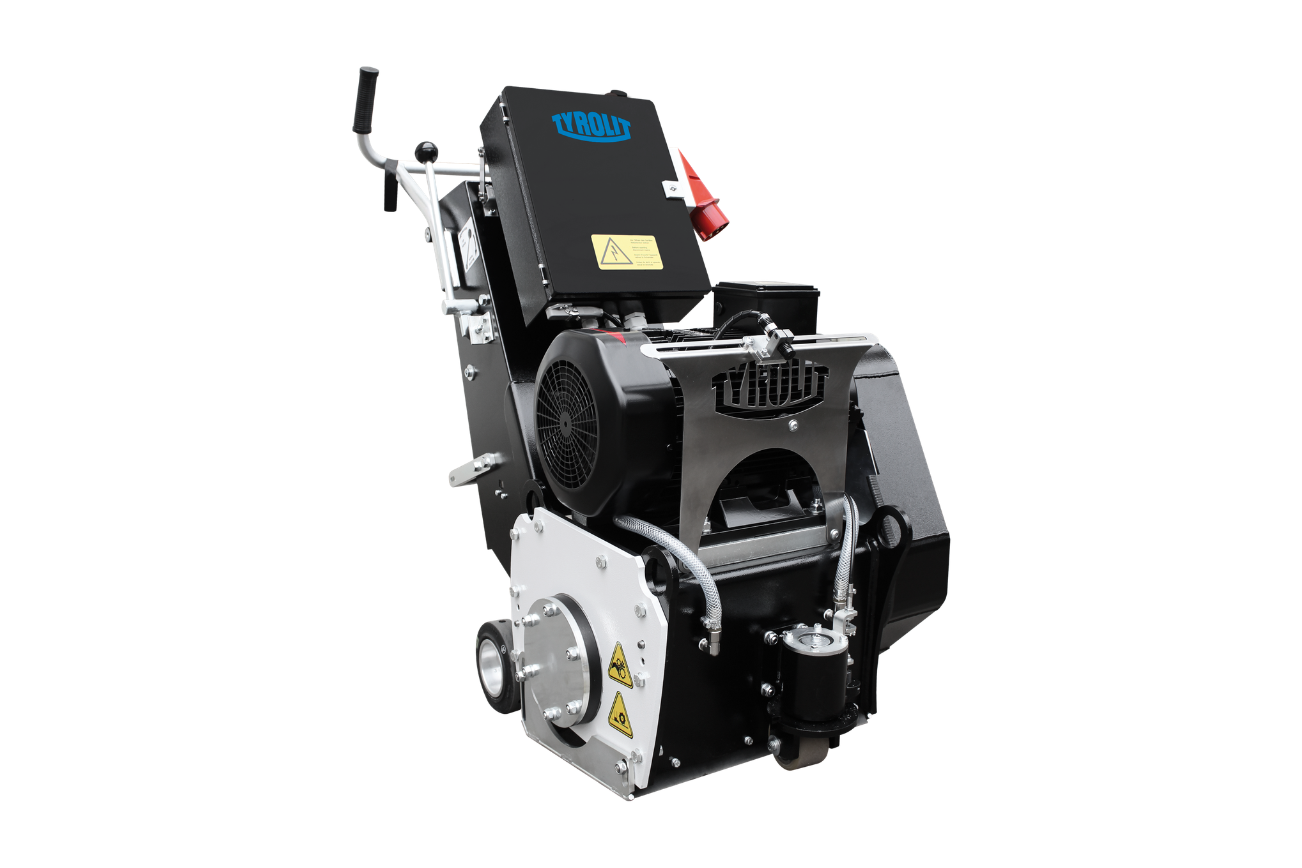

PPC FPE320 Planer

Built for the toughest floors and most demanding jobs.
The PPC FPE320 floor planer is engineered for heavy-duty performance, with robust bearings ensuring reliable, low-maintenance operation. Its continuously variable speed drive provides precise control, while ergonomically designed handlebars allow comfortable, low-fatigue operation throughout the day.

TYRPLANE320-001

Call Us, 01522 561460

PPC FPE320 Planer TYRPLANE320-001

Overview
Data Sheet
Applications
Compatible Items
PPE

Overview:

Equipped with our cutter or milling cutter drums and a 320 mm working width, the FPE320 is ideal for efficiently processing large areas—delivering power, precision, and productivity where it matters most.

Maximum Productivity

2Powerful 415V motor combined with a wide 320mm cutting path delivers fast, aggressive material removal over large areas.

Easy Operation

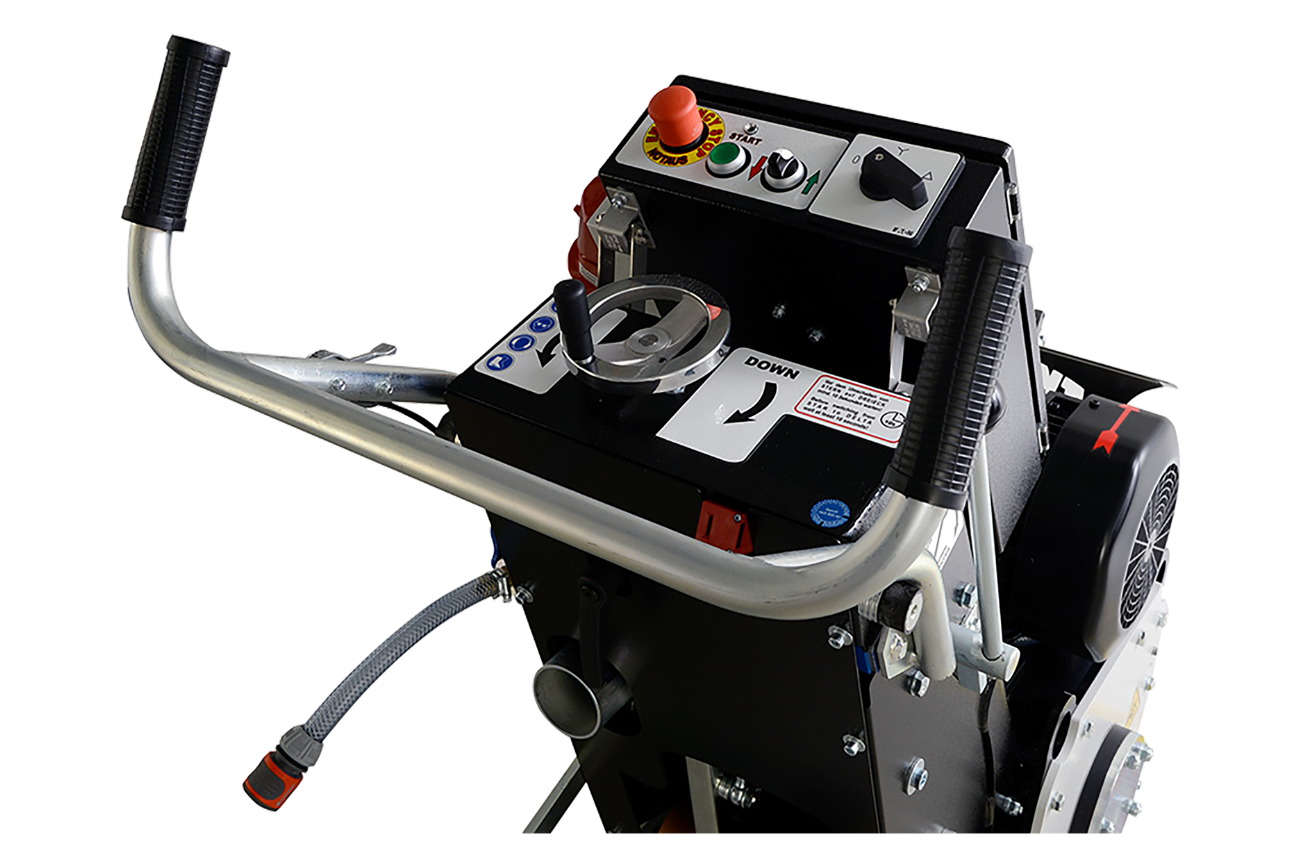

Ergonomically designed handle bars with control unit

Versatile & Adjustable

Suitable for a wide range of drum and cutter types to tackle various applications with maximum efficiency.

Data Sheet

Model:	PPC FPE320 PLANER
Power Supply:	415v 32amp
Working Width:	Up to 320mm
Dimensions:	1180mm x 980mm x 630mm
Weight:	270kg
Motor:	15kW
Noise Level:	109 dB(A)
Hand-Arm Vibration:	5.6 m/s² r.m.s
Maximum use Time (regular breaks should be taken)	Up to 7 hours*

Applications

Compact, tough, and contractor-proven, the PPC FPE320 Planer is the go-to machine for professional planning and preparation—designed to perform where others fall short, including:

Removing Thermoplastic Lines

Removing Roof Chippings

Removing Ice Deposits

Grooving

Reducing Levels

Removing Coatings

Compatible Items

Tyrolit PPC FPE320 Planer TCT Drum Complete 80/8

TYRPLANE320-003

Tyrolit drum complete with TCT Flails, suitable for traffic markings removal, stone surface cleaning, concrete grooving, heaving milling of concrete, scabbling, cleaning and roughening concrete and asphalt.

Tyrolit PPC FPE320 Planer Milling Drum Complete 80/20

TYRPLANE320-004

For removal of thermoplastic line markings, Bitumous & rubber deposits, epoxy coatings & cementitious screeds in excess of 2mm.

Tyrolit PPC FPE320 Planer Drum with Diamond Blades

TYRPLANE320-006/007

For aggressive removal of concrete, asphalt, coatings and road markings.

Tyrolit PPC FPE320 Planer Drum for Diamond Blades (blades not included)

TYRPLANE320-005

Empty drum complete with flail shafts, ready for attachment of Diamond blades (Blades not included, order TYRPLANE320-006)

Tyrolit PPC FPE320 Planer Drum - Diamond Blades 300x2,6x60x5

TYRPLANE320-006

SPARES ARE AVAILABLE FOR GENERAL MAINTENANCE AND REPAIRS IF REQUIRED.
