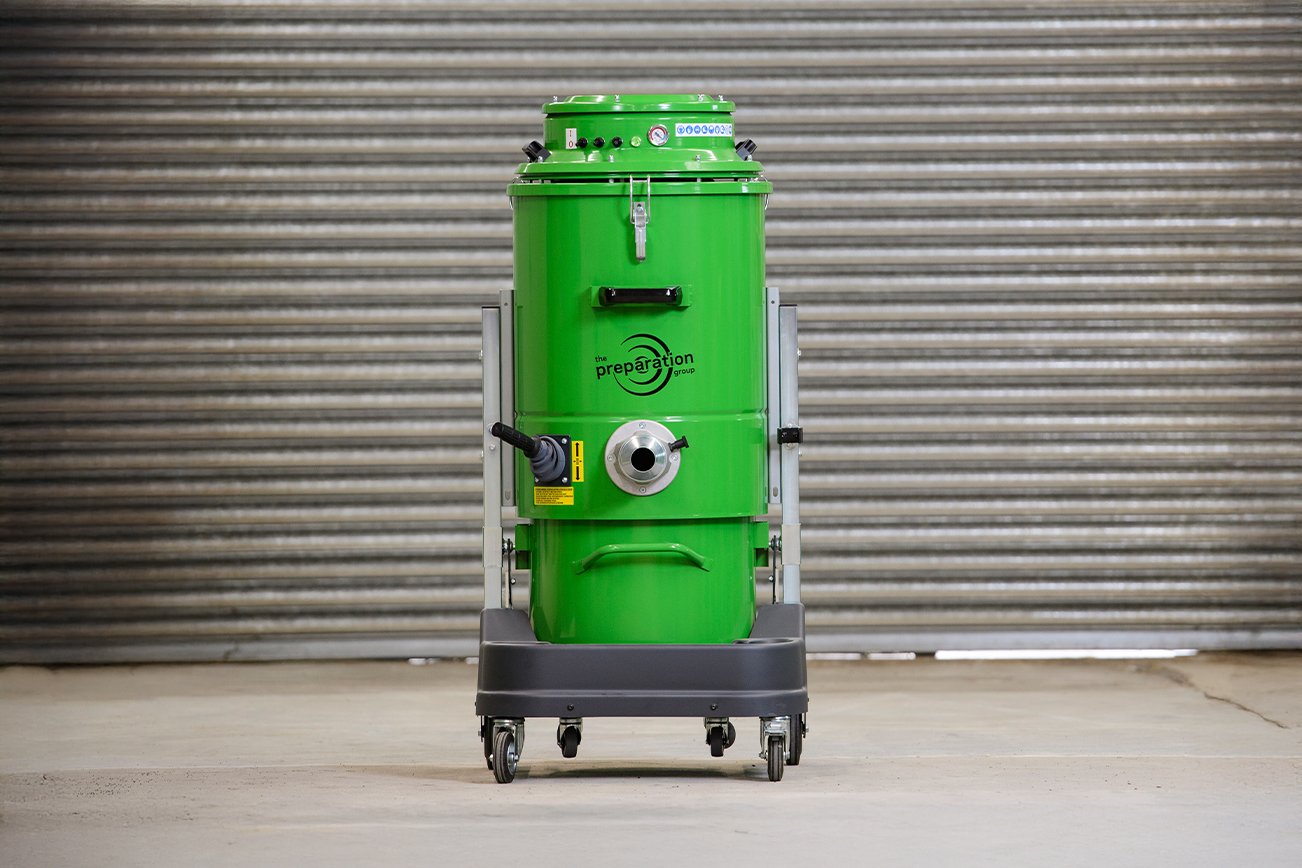

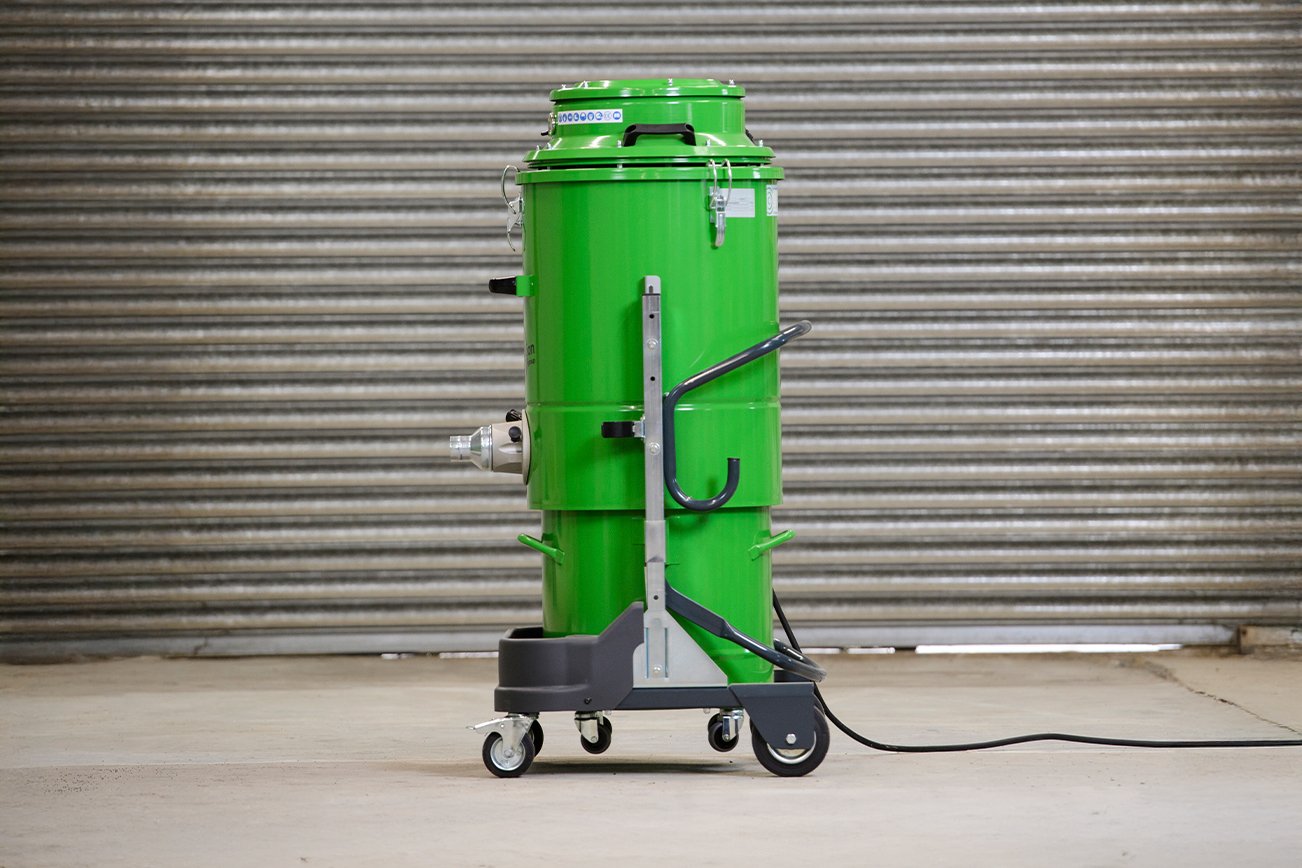

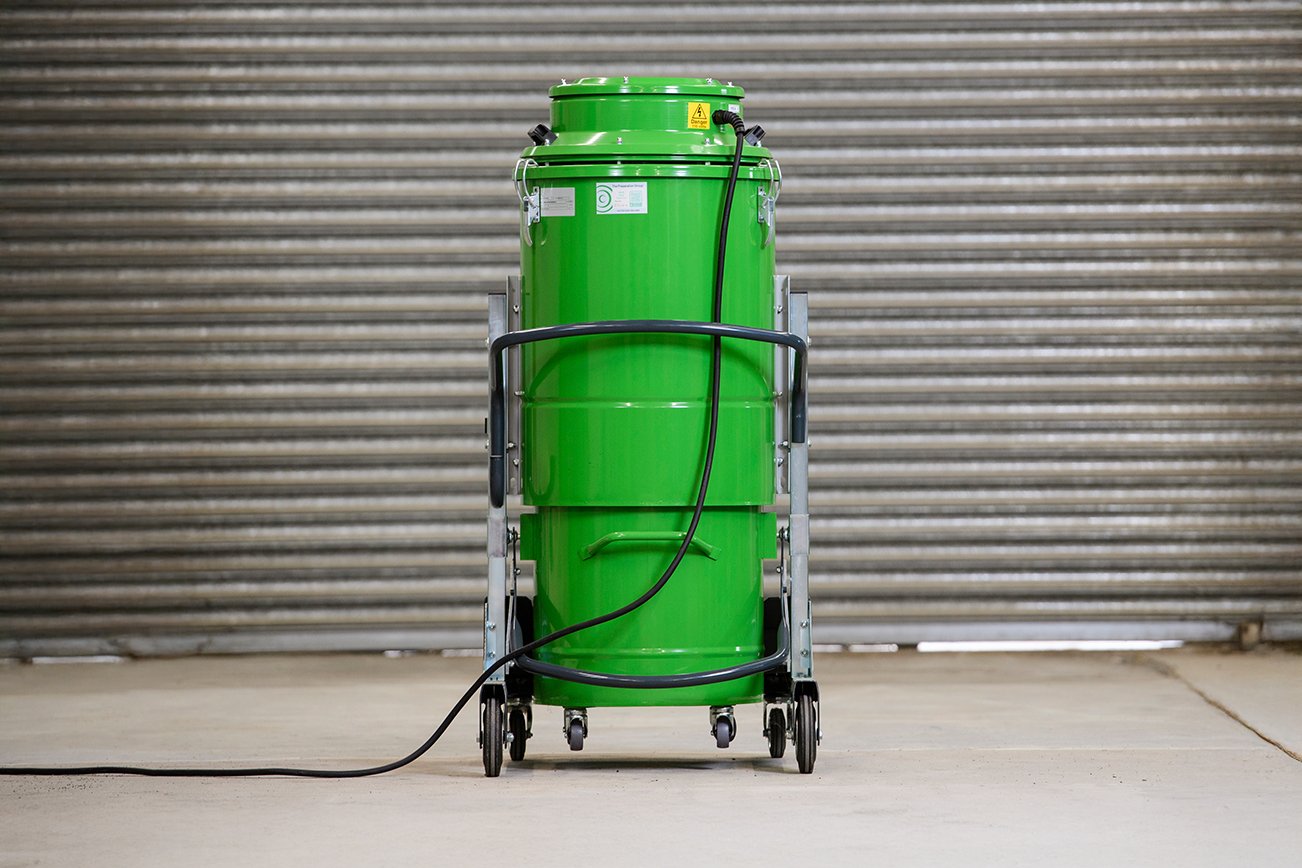

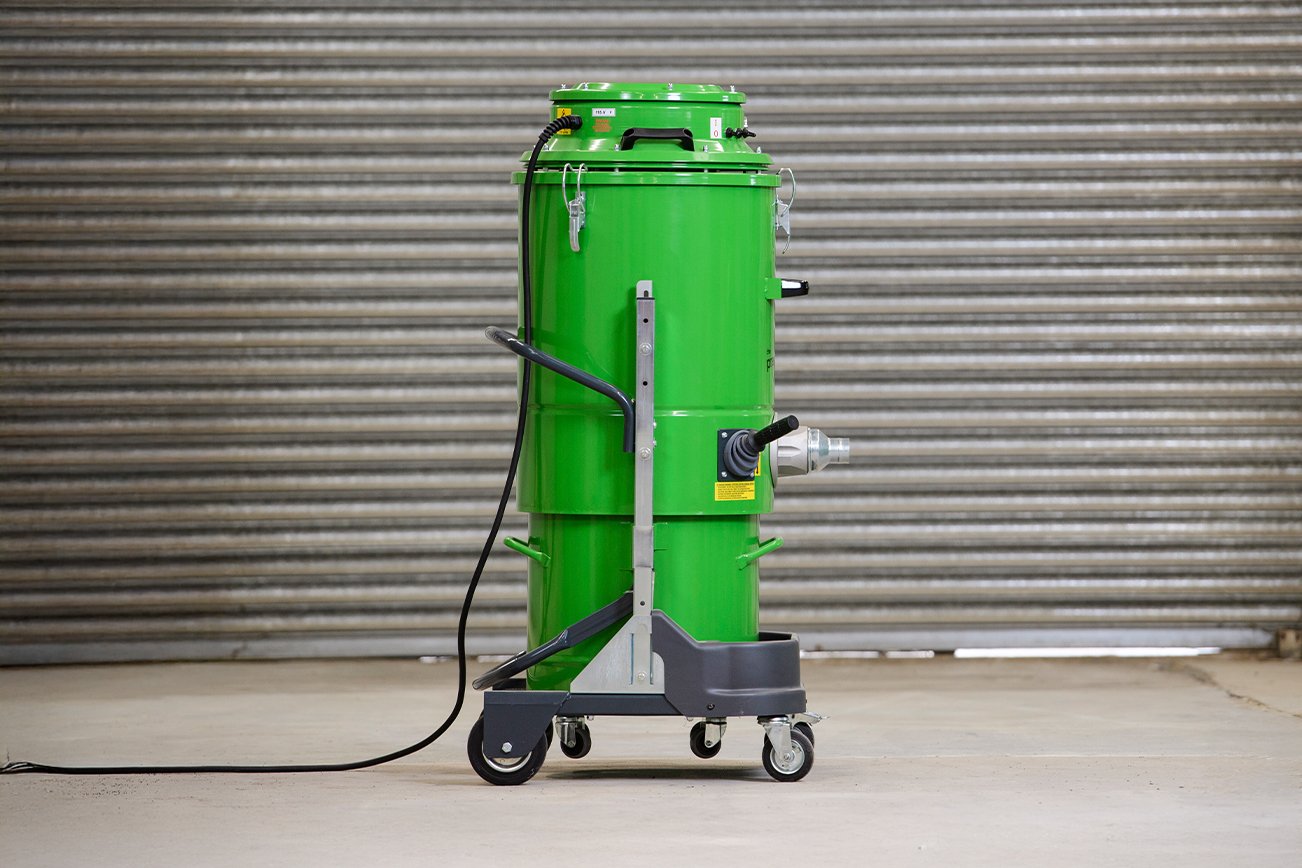

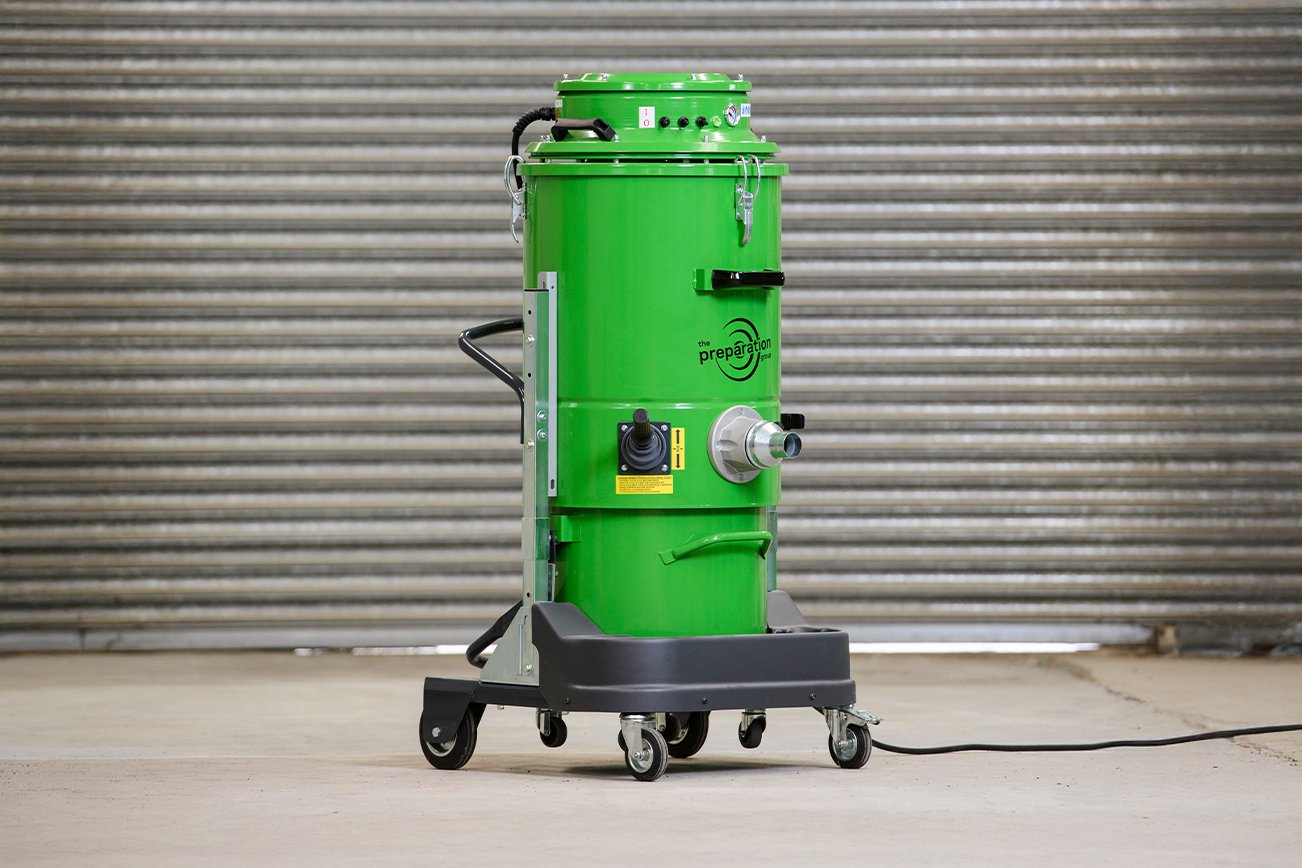

PPC M450 Vacuum

The PPC M450 Vacuum is a robust, high-performance dust extractor engineered
for large-scale, heavy-duty surface preparation. With three independently
controlled motors and a generous 60-litre bin, it provides powerful and adaptable
suction for dust control during grinding, planing, and blasting applications.
The M450 performs exceptionally well in environments where water is used for
dust suppression or as part of the grinding process. Its durable construction, easyrelease
bin, and efficient filtration system make it ideal for challenging site conditions where reliability is essential.

VAC-037 / VAC-233 H Class

PPC M450DS Vacuum VAC-037 / VAC-233 H Class

PPC M450DS Vacuum VAC-037 / VAC-233 H Class

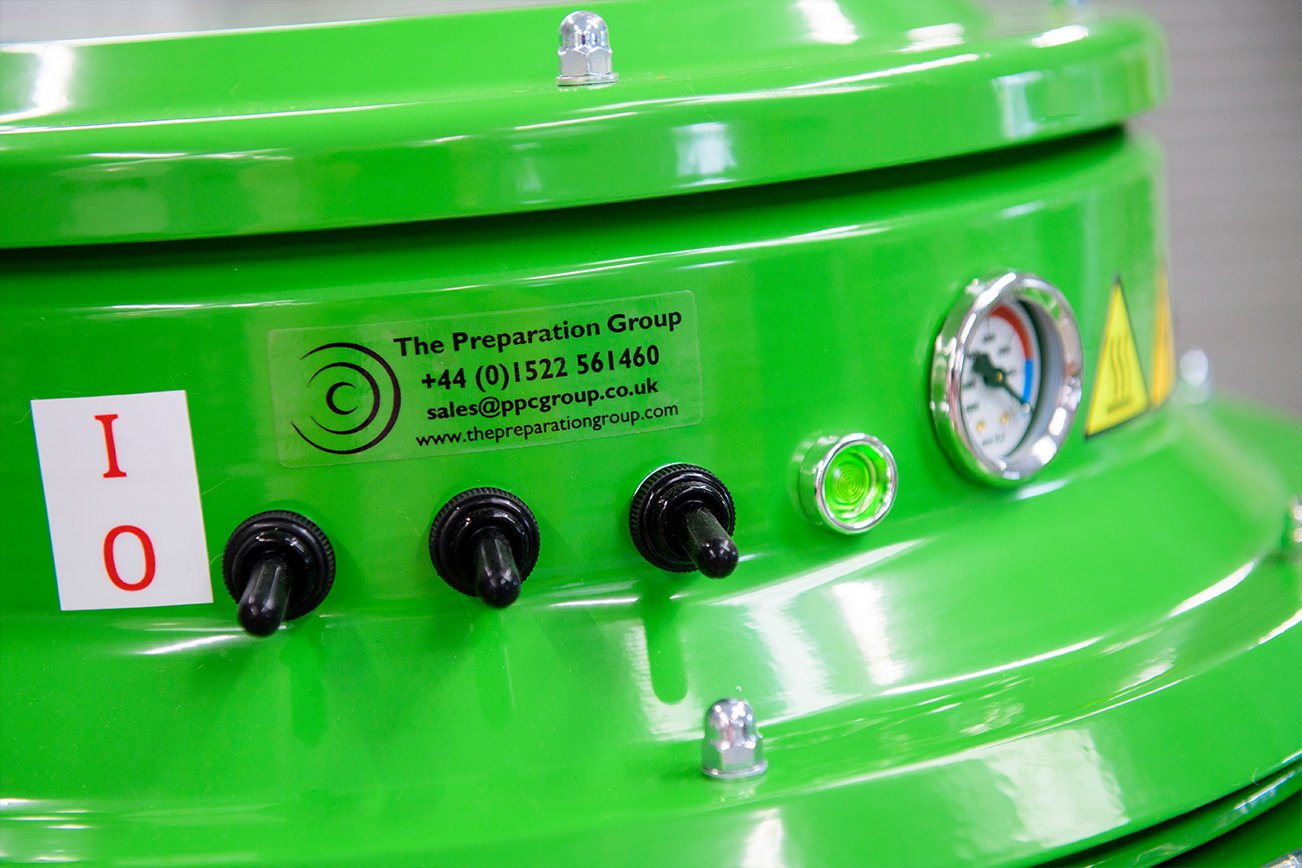

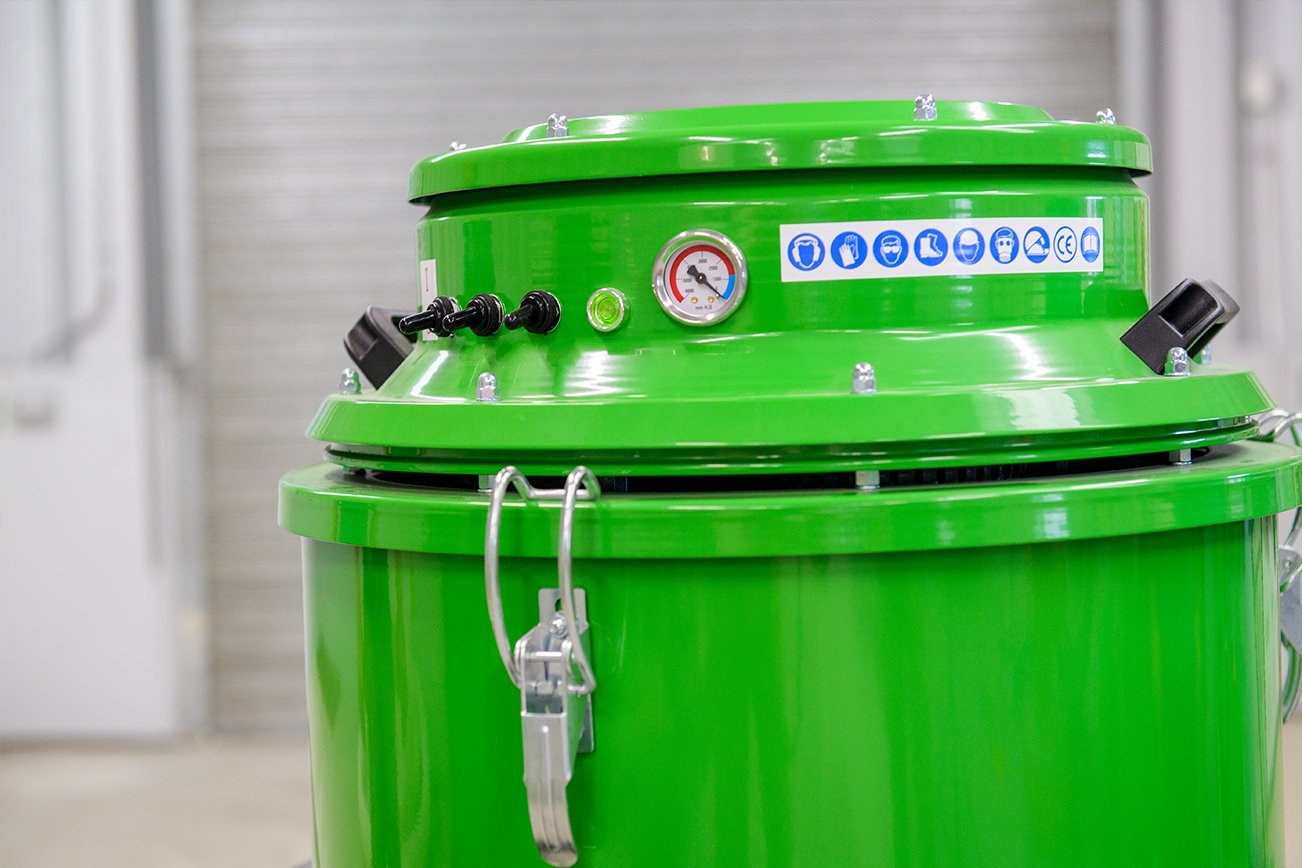

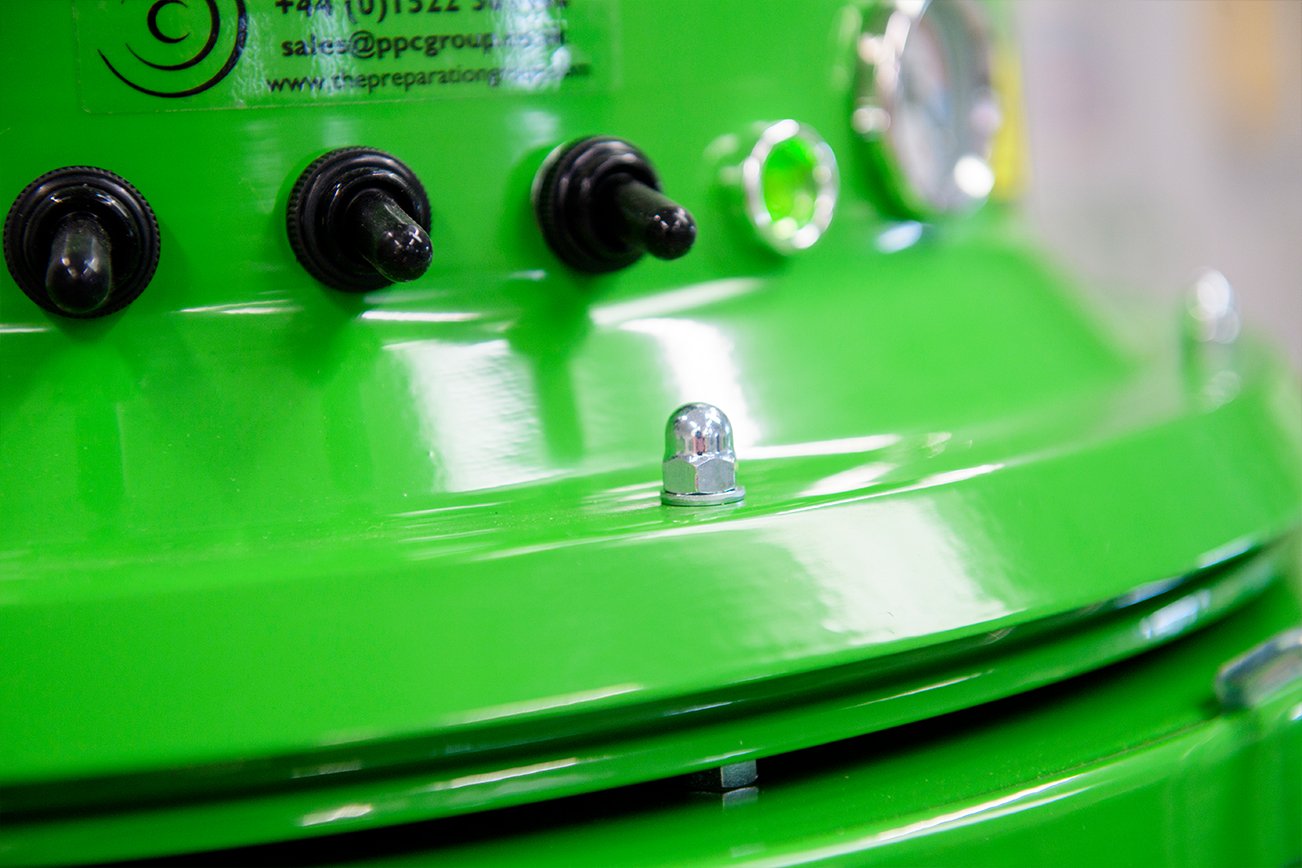

Triple Motor Power

Three 1.1kW motors offer variable suction control, allowing energy-efficient operation or maximum extraction power as needed.

Dust Control in Wet Environments

Can be used effectively in areas where water is introduced for dust suppression or cooling or where moisture is present in the subfloor.

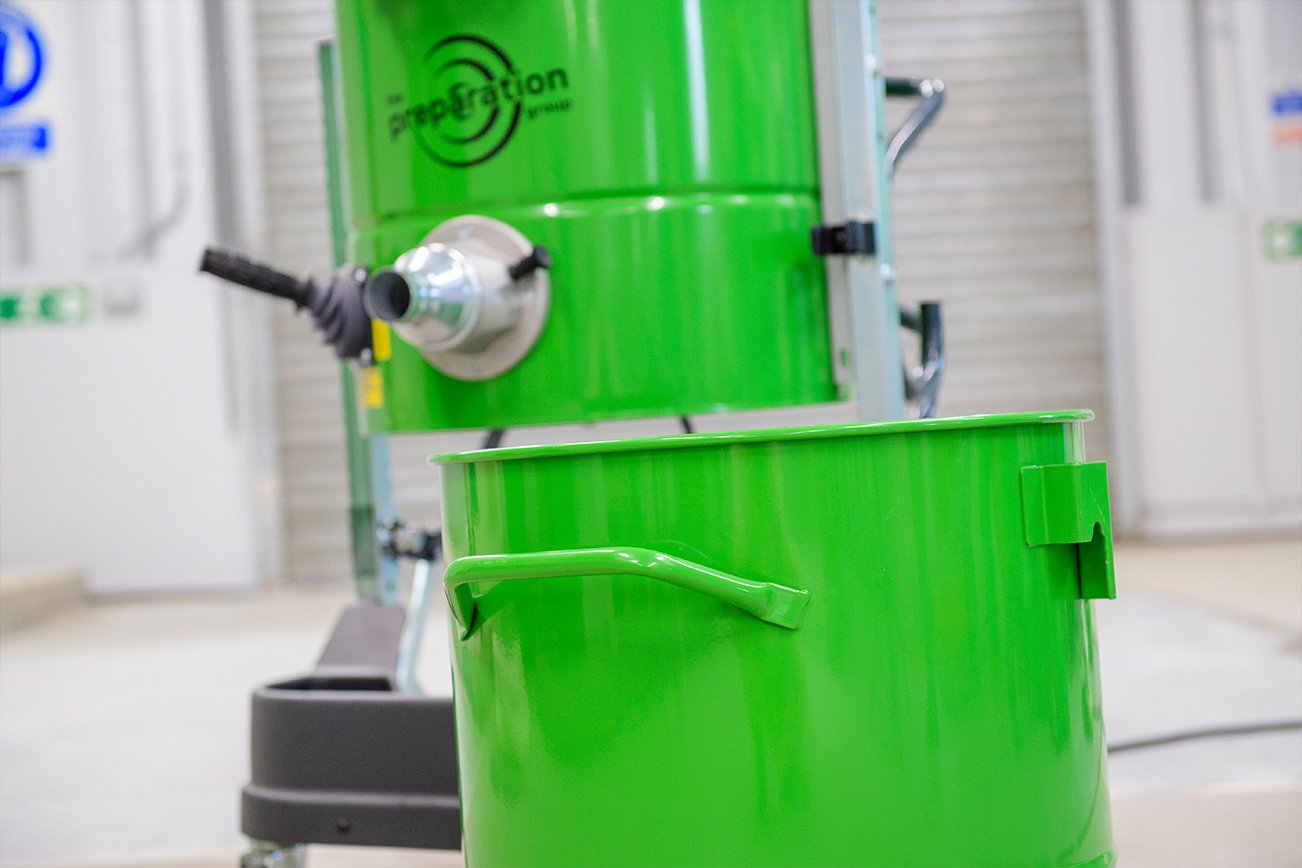

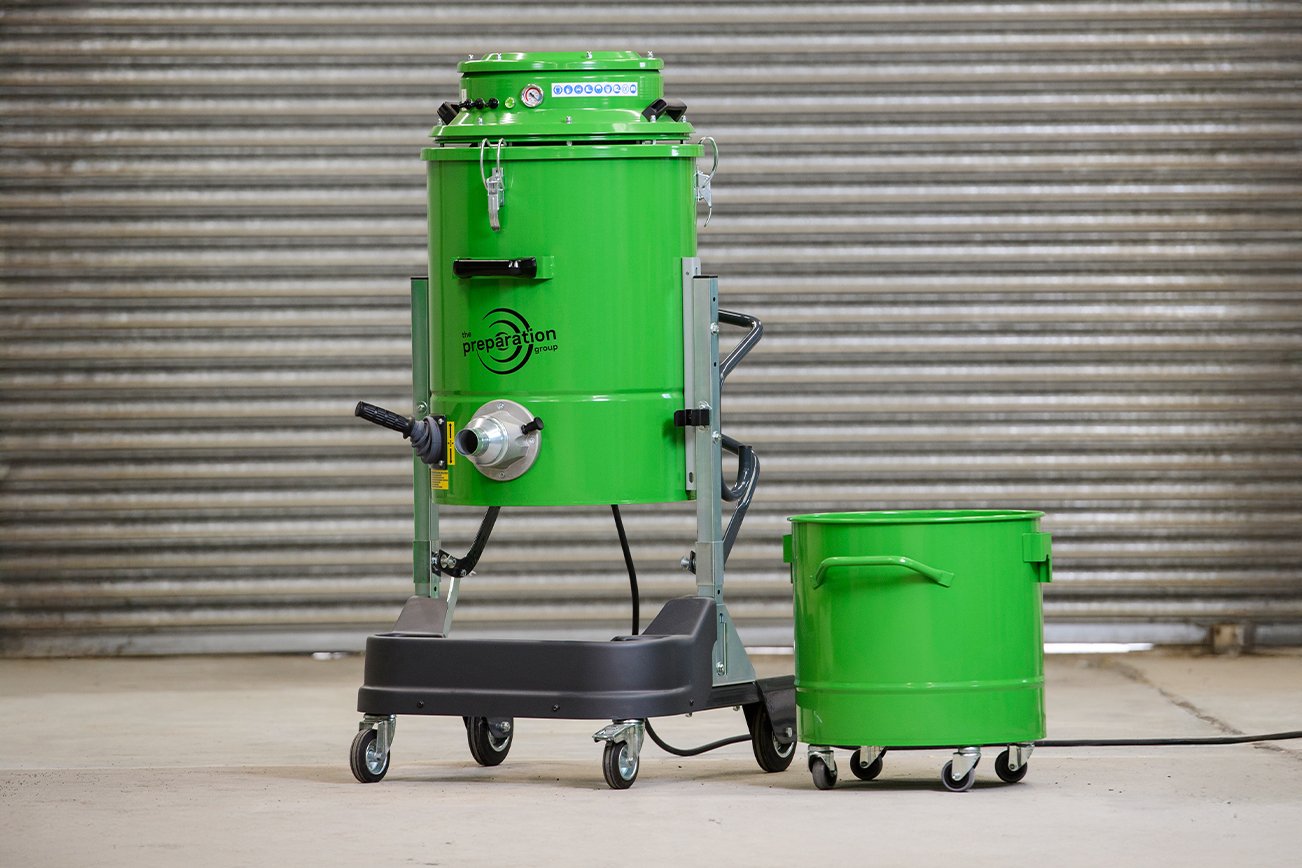

Large 60L Capacity

High-volume wheeled bin extends working time and allows for easy disposal of collected dust and debris.

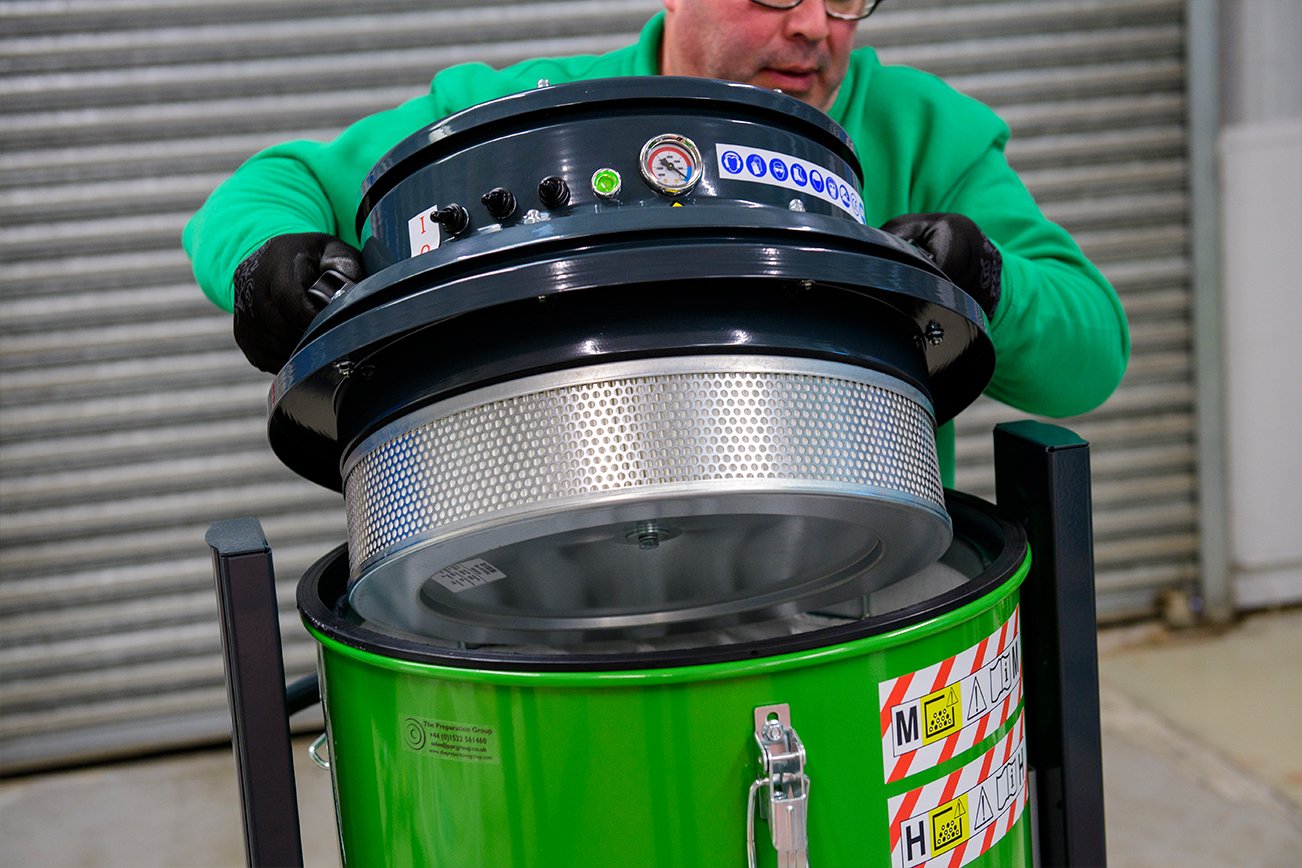

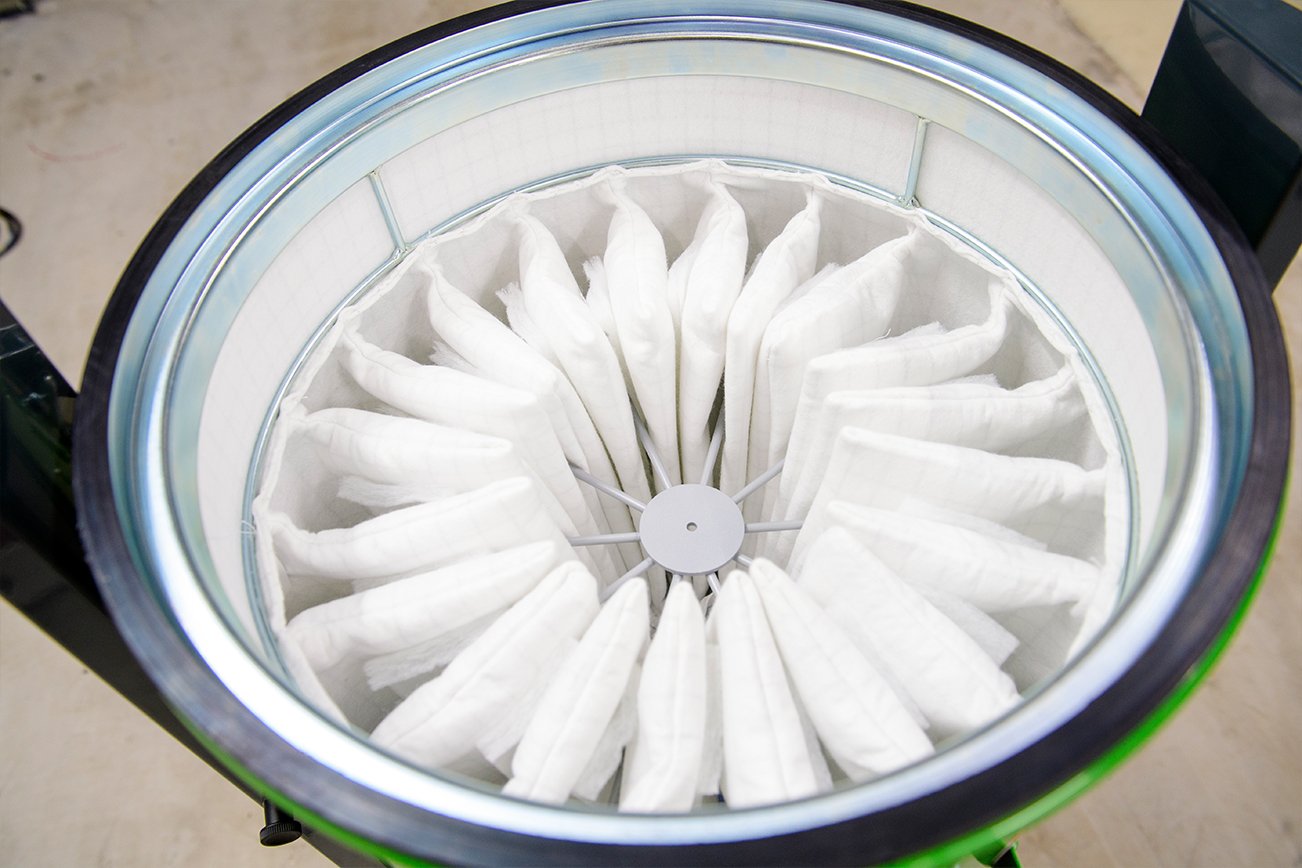

Durable Filtration System

Long-life, high-efficiency filter captures fine dust particles; external cleaning lever helps maintain suction during extended use.

Rugged, Site-Ready Design

Steel frame construction stands up to tough job site conditions; compatible with PPC grinders, planers, and shotblasters.

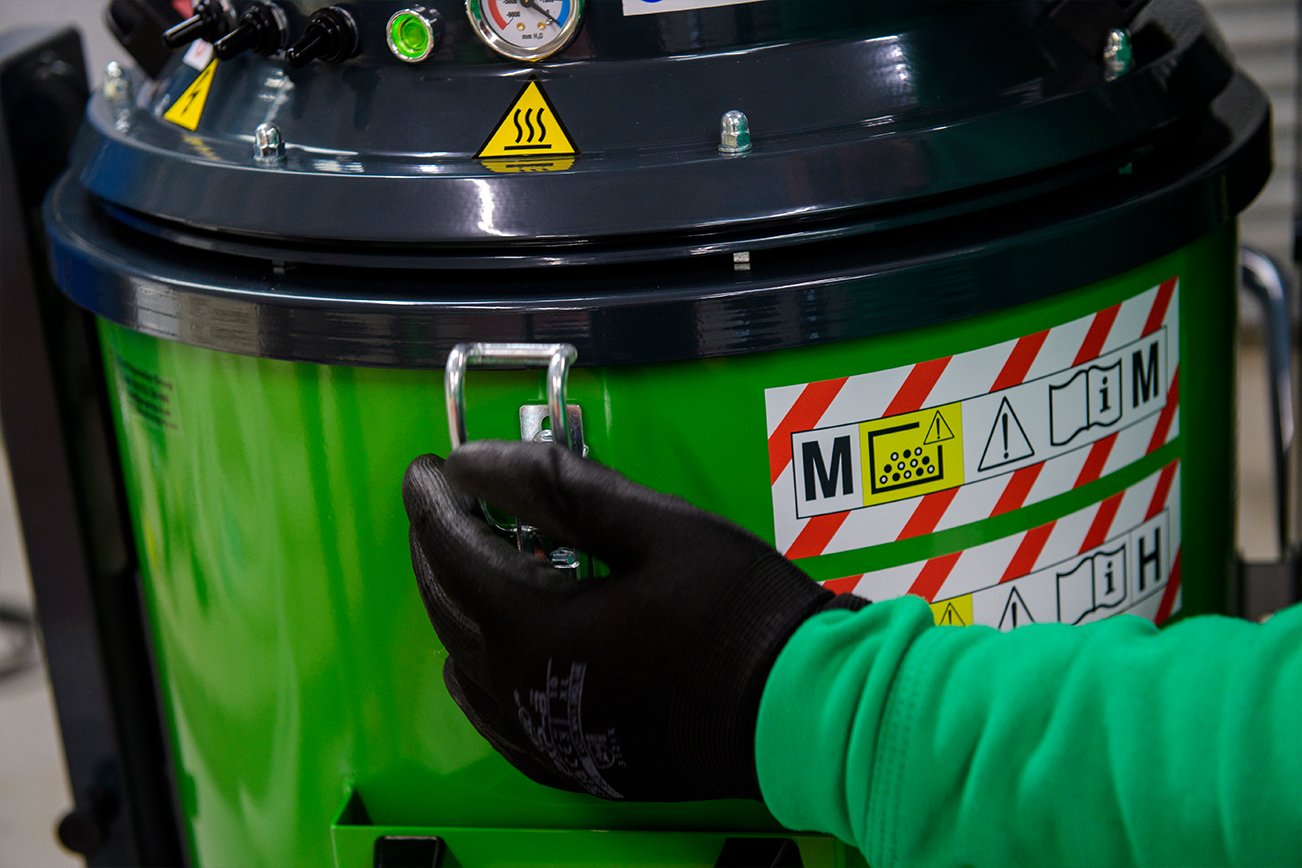

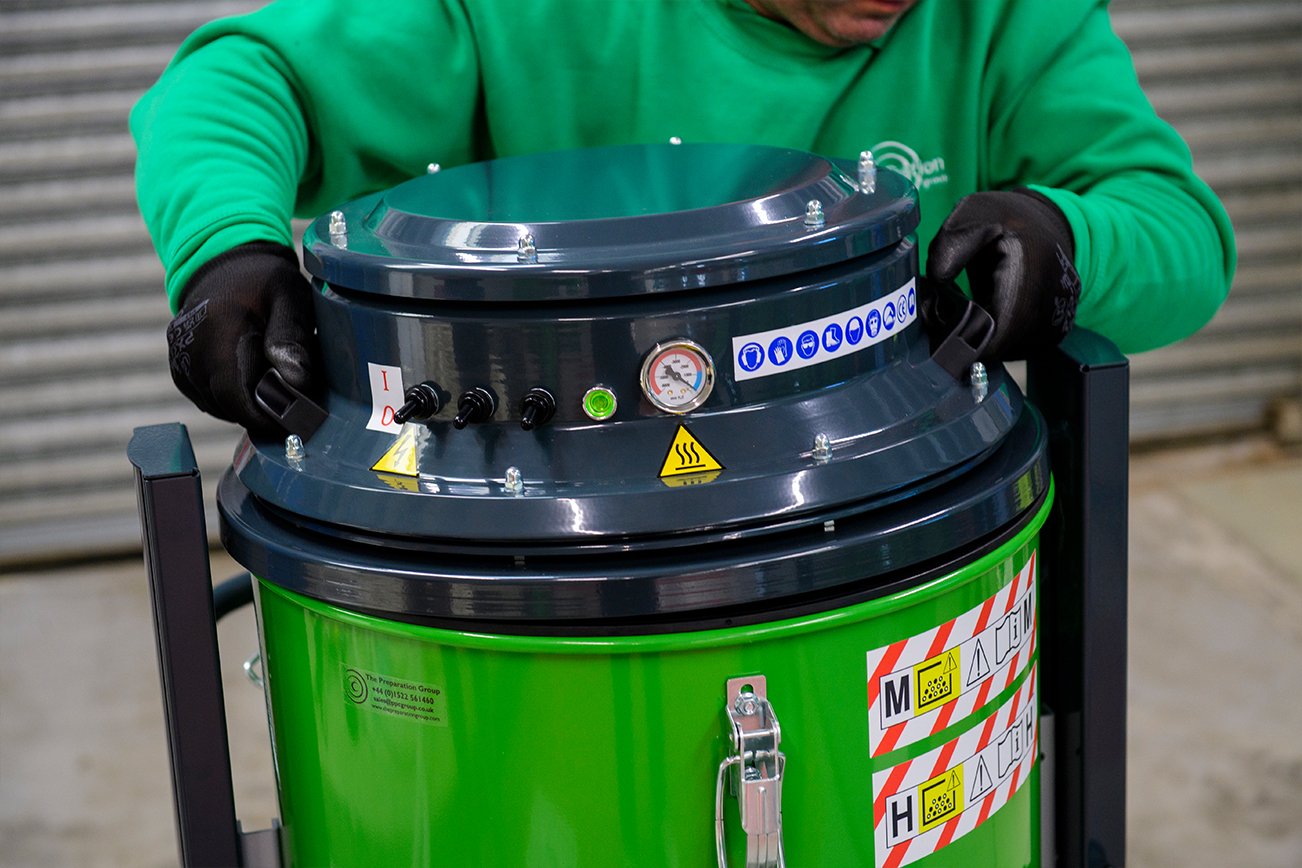

Filter Class Options

Supplied with M-Class filtration as standard and available with H-Class for hazardous dust applications.

Data Sheet

Model:

PPC M450 VACUUM

Power Supply:

110v / 32amp

Motor:

3×1.1 kW

Dimensions:

1500mm (H) x 770mm (L) x 660mm (W)

Weight:

85kg

Air Flow:

540 m³/hour

Noise Level:

76 dB(A)

Hand-Arm Vibration:

NA

Bin Capacity:

60 Litre

Applications

Built for real-world site conditions, the PPC M450 Vacuum delivers powerful, reliable dust extraction—even where moisture is present, making it the ideal choice for professional contractors needing consistent, clean performance on demanding jobs, including:

Making it the ideal choice for professional contractors needing consistent, clean performance on demanding jobs.

Videos

Compatible Items

110v 32amp Extension Cable

ELEC-015

14m complete with fitted plug and socket.

Hose

DUCTING-007

50mm Clear PU Heavy Duty Antistatic Ducting is used to connect the dust extractor to equipment. Stronger and longer lasting than PVC hose.

5Kva Transformer

ELEC-011

For converting standard 240v electric into site safe 110v electric. Intermittent rating of 5000W – Continuous rating of 2500W.

Vacuum Motor

VAC-032

110V/1kw Replacement Motor.

M Class Filter

VAC-061

14 Pocket PTFE M-Class filter is a high-performance industrial vacuum filter designed for superior dust filtration and durability. With its PTFE coating, it ensures efficient particle capture while extending filter and vacuum life, making it ideal for demanding industrial applications.

H Class Filter

VAC-090

Hepa filter suitable for decontamination, asbestos projects, hazardous and fine particle work.

Wand

VAC-007

Wands are chrome plated ‘s’ tubes for when the dust extractor or vacuum is used in isolation.

Floor Nozzle

VAC-008

430mm long with 2 bristle strips and two adjustable wheels make it easy to move around.

Connector

VAC-013 / VAC-014

Machine to Hose Connector available in 80mm-50mm or 80mm-70mm

Rubber Cones

VAC-020 / VAC-019

Cone/Crevice Tool. Available in 40mm or 50mm.

Y Piece Connector

VAC-029

Enables the user to connect 2 x 50mm hose segments to the M450 Vacuum. 80/50/50.

Seals for nozzle

Brush VAC-018 / Rubber VAC-022

Replacement seals for floor nozzle. Available in brush or rubber

SPARES ARE AVAILABLE FOR GENERAL MAINTENANCE AND REPAIRS IF REQUIRED.

Spares are available for general maintenance and repairs if required.
