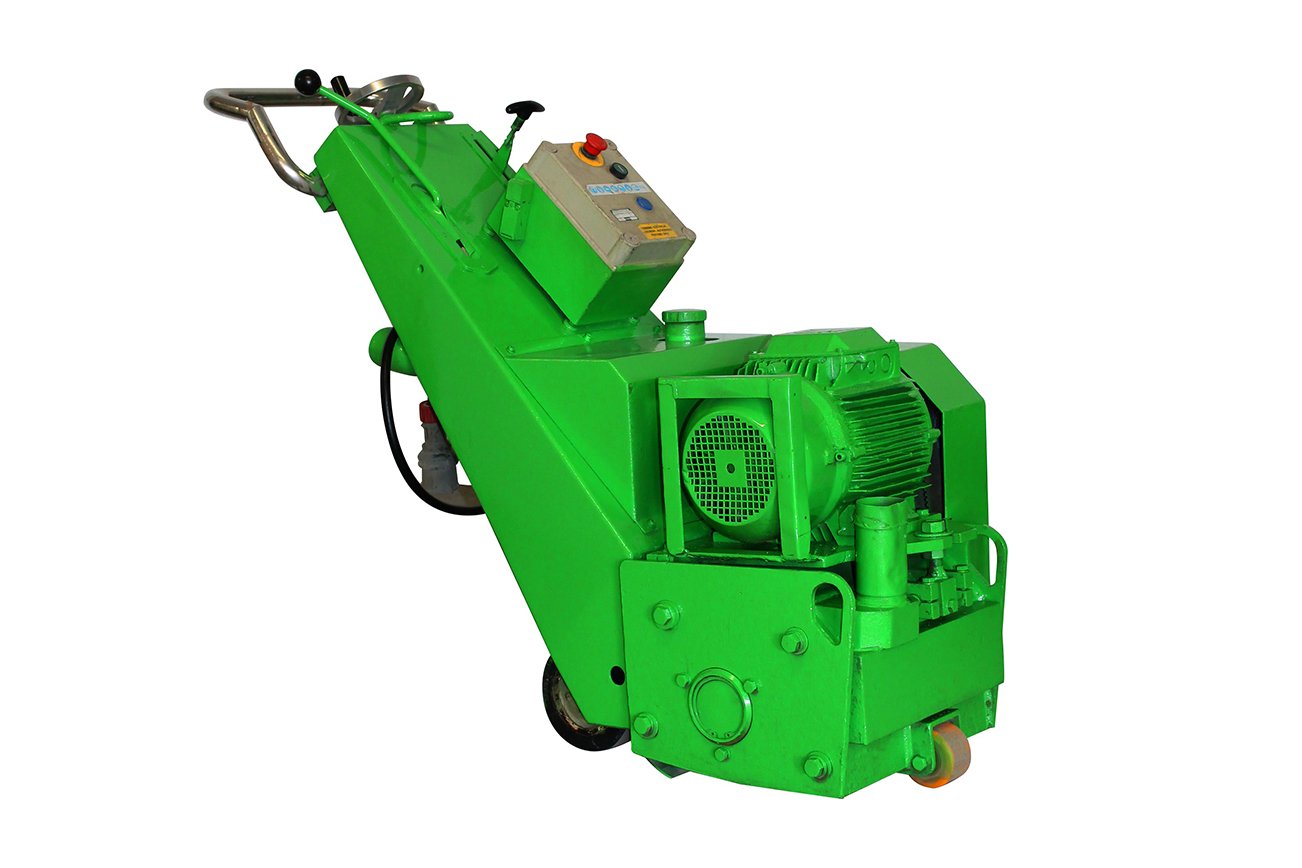

320 PPC Electric Planer

The PPC 320 Planer is the largest and most powerful planer in our fleet—purpose-built for high-output surface removal on industrial-scale jobs. With a massive 320mm cutting width and a heavy-duty 415V motor, it’s designed to tackle the toughest surfaces
with speed and precision. Proven over decades by our own in-house contracting team, the PPC 320 is the ultimate choice for serious contractors who demand performance without compromise.

PLANE320-001

320 PPC Electric Planer PLANE320-001

320 PPC Electric Planer PLANE320-001

Maximum Productivity

High-torque 415V motor combined with a wide 320mm cutting path delivers fast, aggressive material removal over large areas.

Heavy-Duty Construction

Reinforced steel chassis and vibration-damped handles ensure durability and operator comfort on long shifts.

Precision Depth Control

Adjustable drum height allows for exact planing depth, ensuring consistent results across varied surfaces.

Versatile & Adaptable

Compatible with a full range of flail types and drum configurations to suit every surface prep requirement.

Data Sheet

Model:

320 PPC Electric Planer

Power Supply:

415v/ 3phase

Working Width:

320mm

Dimensions:

1140mm (H) x 1300mm (L) x 600mm (W)

Weight:

395kg

Noise Level:

91 dB(A)

Hand-Arm Vibration:

5.6 m/s² r.m.s

Motor:

11 kW

Maximum use Time (regular breaks should be taken):

Up to 6 hours*

Applications

Proven over decades by our own in-house contracting team, the PPC 320 is the ultimate choice for serious contractors who demand performance without compromise, including:

Videos

Compatible Items

TCT Drum

Drum PLANE320-052 Flail 8pt PLANE320-061

For traffic markings removal, stone surface cleaning, concrete grooving, heaving milling of concrete, scabbling, cleaning and roughening concrete or asphalt.

Milling Drum

Drum PLANE320-054 Flail PLANE320-057

Milling Drum complete with milling flails and spaces. For removal of thermoplastic lines, Bitumous & rubber deposits.

Star Drum

Drum PLANE320-088 Flail PLANE320-056

Suitable for removing paint, latex, adhesives, ice deposits & rust from steel.

Beam Drum

Drum PLANE320-068 Flail PLANE320-055

For cleaning off paint, de-scaling steel, removal of grease.

Empty Drum

PLANE320-053

Harden steel drum with 22mm flail shafts.

Flail Shaft

PLANE320-058

22mm harden steel shaft suitable for 320 Planer Drum.

Spacers

PLANE320-063

Case hardened spacers to fit in between individual flails.

415v 32amp Extension Cable

ELEC-136

Extension Lead with plug and socket 6mm x 25m

SPARES ARE AVAILABLE FOR GENERAL MAINTENANCE AND REPAIRS IF REQUIRED.
