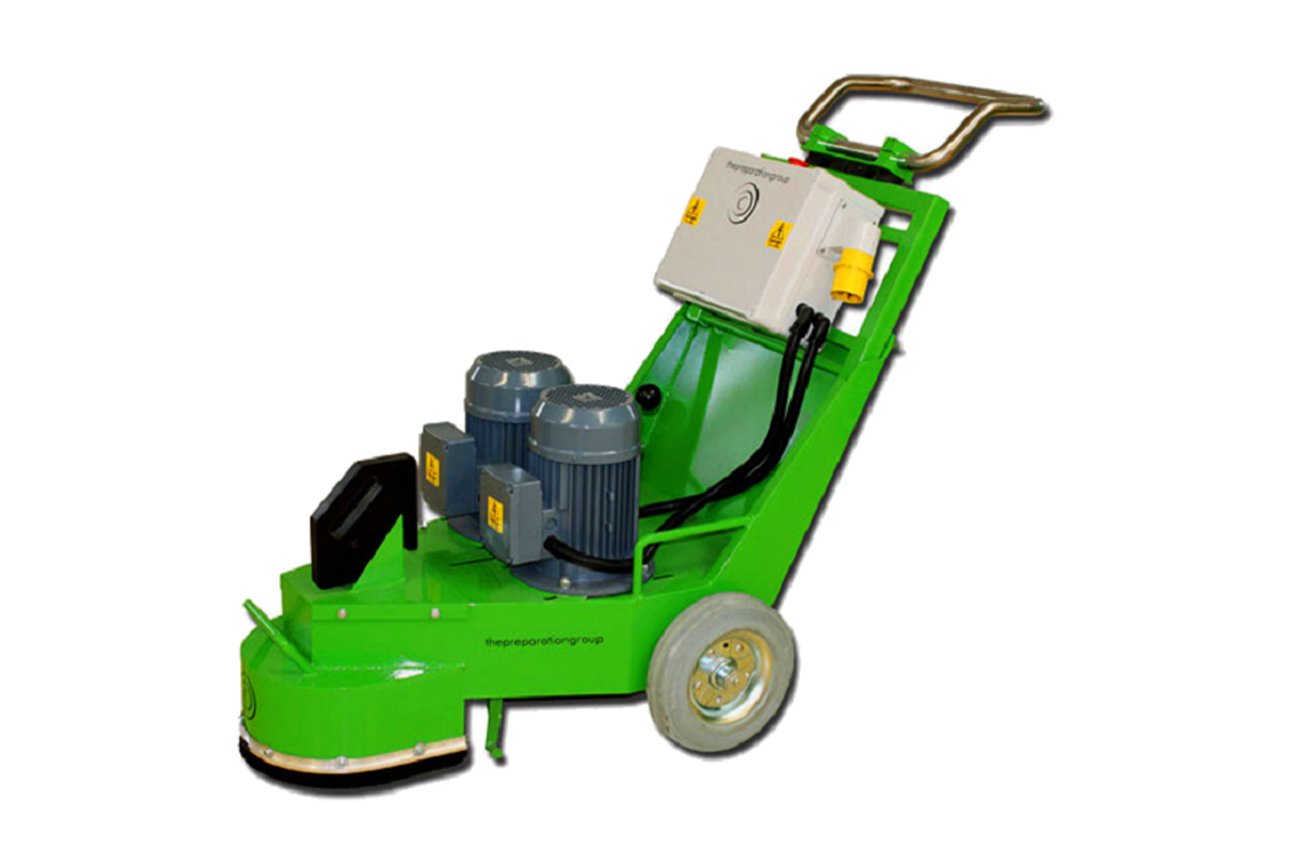

PPC 250TP Grinder

The PPC 250TP is a high-performance single-head grinder designed for medium to large surface preparation projects. Featuring dual 2.2kW motors, it delivers the grinding power of a 3-phase machine, while operating on a 110V, 32A single-phase setup. Due to its power requirements, the 250TP must be run from a standalone power source, such as a 45kVA generator, ensuring consistent, uninterrupted performance on demanding jobs.

GRIND250TP-009

PPC 250TP Grinder GRIND250TP-009

PPC 250TP Grinder GRIND250TP-009

Overview:

Dual 2.2kW Motors

Deliver outstanding torque and performance for heavy-duty grinding and surface prep tasks.

Requires Generator Supply

Must be powered by a 45kVA generator or suitable standalone power source for safe and reliable operation.

250mm Working Width

Covers ground quickly and efficiently on medium to large projects.

Versatile Application

Ideal for epoxy resin removal, screed keying, concrete grinding, and adhesive/bitumen removal.

Compact but Powerful

Easy to store and transport, with optional additional weights for increased downward pressure and stock removal.

Dust Extraction Compatible

Designed to work seamlessly with PPC vacuums to maintain clean, safe site conditions.

Data Sheet

Model:

PPC 250TP Grinder

Power Supply:

110v / 32amp
2x 5kva Transformer
(min 45kva gen)

Working Width:

250mm

Dimensions:

1080mm x 1360mm x 750mm

Weight:

275kg

Noise Level:

82 dB(A)

Hand-Arm Vibration:

2.8 m/s² r.m.s

Maximum use Time
(regular breaks should be taken)

Up to 7 hours*

Applications

The PPC 250TP Grinder brings high-output performance to job sites without 3-phase access—purpose-built for professionals who need serious grinding power with flexible power supply options including:

Videos

Compatible Items

Premium Disc

GRIND250-046

Diamond Disc 20 Round Segment 30/40 Grit Premium, General purpose for grinding and smoothing a multitude of surfaces.

20 Seg Blue Grinding Disc

GRIND250-045

Diamond Disc 20 Segment 30/40 Grit Hard Bond for use on soft materials to reduce diamond wear.

20 Seg Red Grinding Disc

GRIND250-047

Diamond Disc 20 Segment 30/40 Grit Soft Bond for use on hard materials to reduce diamond wear.

20 Seg Yellow Grinding Disc

GRIND250-044

Diamond Disc 20 Seg 30/40 Grit Intermediate Bond for general purpose for grinding and smoothing a multitude of surfaces.

Twin PCD Plate

GRIND250-076

This heavy duty drive plate is fitted with twin tooth Polycrystalline Diamond (PCD) tools, engineered for the fast and efficient removal of tough and sticky surfaces such as epoxy, mastics, adhesives, paints, and coatings. The twin tooth is designed for use on thicker materials as there is less surface area contacting the floor.

Triple PCD Plate

GRIND250-028

This heavy duty drive plate is fitted with triple tooth Polycrystalline Diamond (PCD) tools, engineered for the fast and efficient removal of tough and sticky surfaces such as epoxy, mastics, adhesives, paints, and coatings. The triple tooth is designed for use on thinner materials as there is more surface area contacting the floor.

Twin PCD

GRIND-018

Anti-Clockwise twin PCD Shoe for thick coating removal.

Triple PCD

GRIND-020

Anti-Clockwise triple PCD Shoe for thin coating removal.

PCD Air Grinding Disc 15 piece

GRIND250-112

PCD Air Grinding Disc 15 piece. PCD (Polycrystalline Diamond) grinding discs are specialised abrasive discs designed for high-efficiency material removal, particularly on tough surfaces such as coatings, adhesives, epoxy, paint, and bitumen.

PCD with Diamonds

GRIND250-127

PCD tips that scrape coatings without generating excessive heat, it prevents soft materials from becoming tacky or clogging the tool—ensuring consistent performance and maximum efficiency. The addition of 10 supporting diamond segments provides simultaneous light grinding action, helping to remove surface layers and lightly abrade the substrate. This dual-action design not only enhances coating removal but also refines the surface in a single pass, improving preparation speed and finish quality.

Air Diamond Disc

GRIND250-093

16/20 Grit, Medium Bond, 20 Segment (Aggressive Removal) Engineered for aggressive stock removal, this 16/20 grit, medium bond, 20-segment disc delivers excellent grinding performance on tough surfaces. Ideal for removing thick coatings, very thin adhesives, and levelling uneven or heavily patched concrete floors.

Air Diamond Disc

GRIND250-090

30/40 Grit, Medium Bond, 20 Segment (General Purpose) This versatile 30/40 grit, medium bond, 20-segment grinding disc offers consistent smoothing and surface refinement, making it ideal for general subfloor preparation. It effectively removes surface imperfections, levels joints, and prepares concrete or cementitious floors for further treatment.

Air Diamond Disc

GRIND250-089

30/40 Grit, Soft Bond, 20 Segment (Hard Substrates) Optimised for hard or dense concrete surfaces, this 30/40 grit, soft bond, 20-segment grinding disc offers superior cutting action where medium bonds struggle. Its soft bond structure ensures consistent wear and fast material removal on harder substrates.

110v 32amp Extension Cable

2x ELEC-015

14m complete with fitted plug and socket.

Continuous 5Kva Transformer

2x ELEC-012

For converting standard 240v electric into site safe 110v electric. Power = 5000VA Duty = Continuous

SPARES ARE AVAILABLE FOR GENERAL MAINTENANCE AND REPAIRS IF REQUIRED.
