PPC 200 Electric Planer

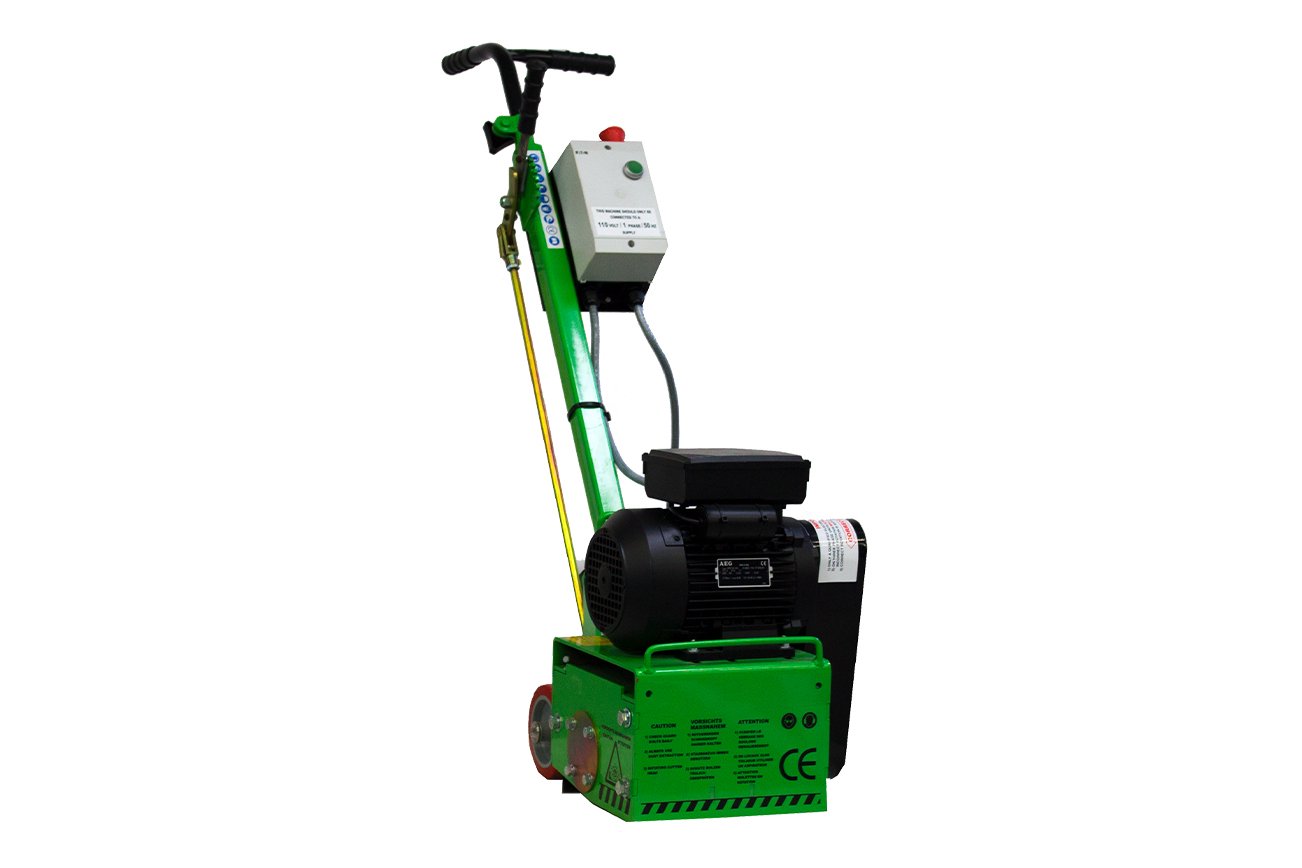

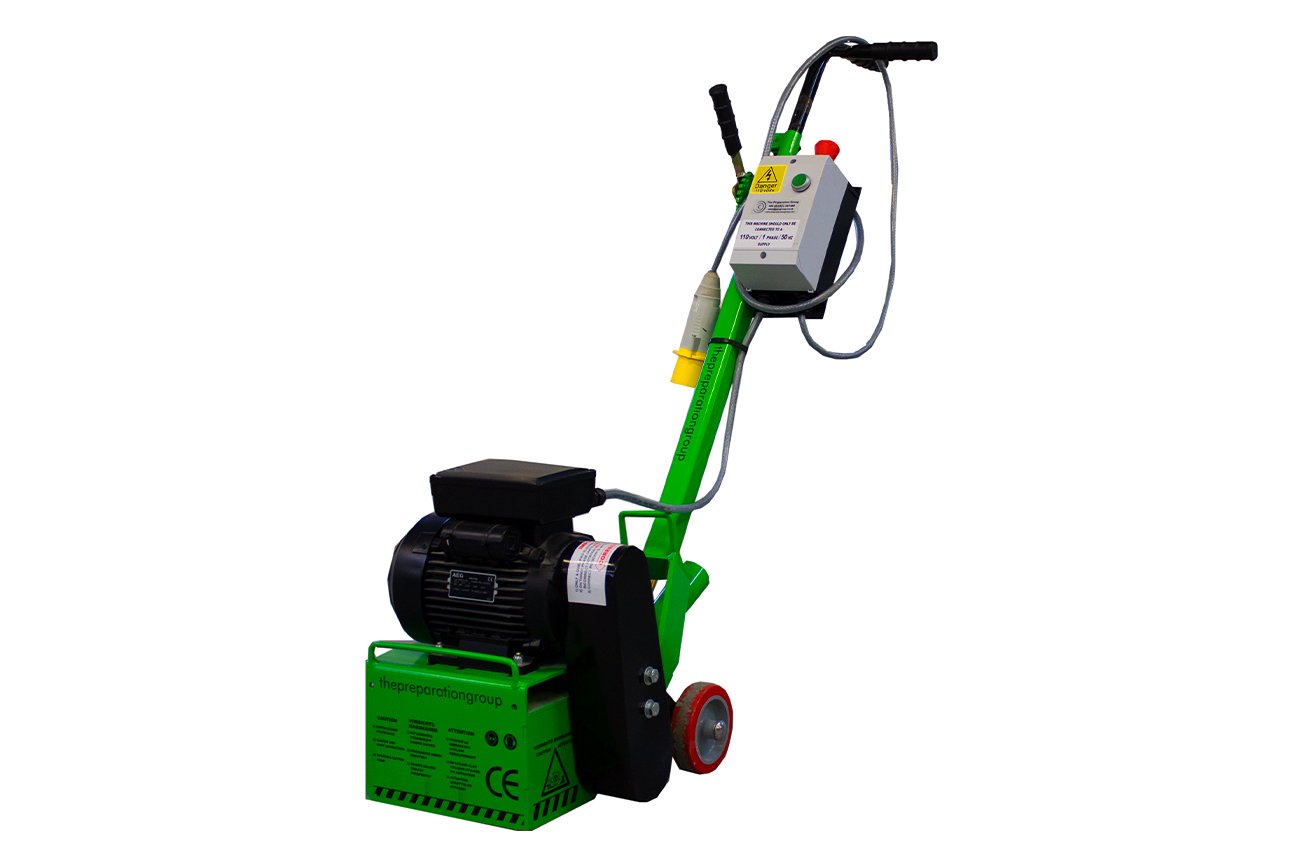

The PPC 200 Planer is a compact yet powerful planning machine designed for aggressive surface removal and precision planing. Engineered for control and durability, it’s ideal for stripping coatings, removing trip hazards, and keying concrete—all with the reliability contractors expect from the PPC range. Tried and tested by our own team for decades, it’s the trusted choice for tough surface prep jobs.

PLANE200-001

Call Us, 01522 561460

PPC 200 Electric Planer PLANE200-001

Overview
Data Sheet
Applications
Videos
Compatible Items
PPE

Overview:

The PPC 200 Planer requires an industrial vacuum to be attached for a safe and clean operation. Ensure compatible industrial vacuum systems are used during operation to maintain air quality and comply with industry health & safety standards.

High-Performance Planing

Powerful motor and precise drum assembly deliver fast, controlled removal of concrete, screeds, coatings, contaminants and more.

Compact but Capable

200mm cutting width strikes the perfect balance for manoeuvrability and output, especially in tight or confined areas.

Built for Contractors

Robust all-steel construction and heightadjustable drum ensure consistent results and long service life on busy job sites.

Versatile & Adjustable

Suitable for a wide range of drum and cutter types to tackle various applications with maximum efficiency.

Data Sheet

Model:	PPC 200 ELECTRIC PLANER
Power Supply:	110V
Working Width:	Up to 200mm
Dimensions:	980mm x 1200mm x 360mm
Weight:	65kg
Motor:	2.2kW
Noise Level:	89 dB(A)
Hand-Arm Vibration:	5.6 m/s² r.m.s
Maximum use Time (regular breaks should be taken)	Up to 6 hours*

Applications

Compact, tough, and contractor-proven, the PPC 200 Planer is the go-to machine for professional planning and preparation—designed to perform where others fall short, including:

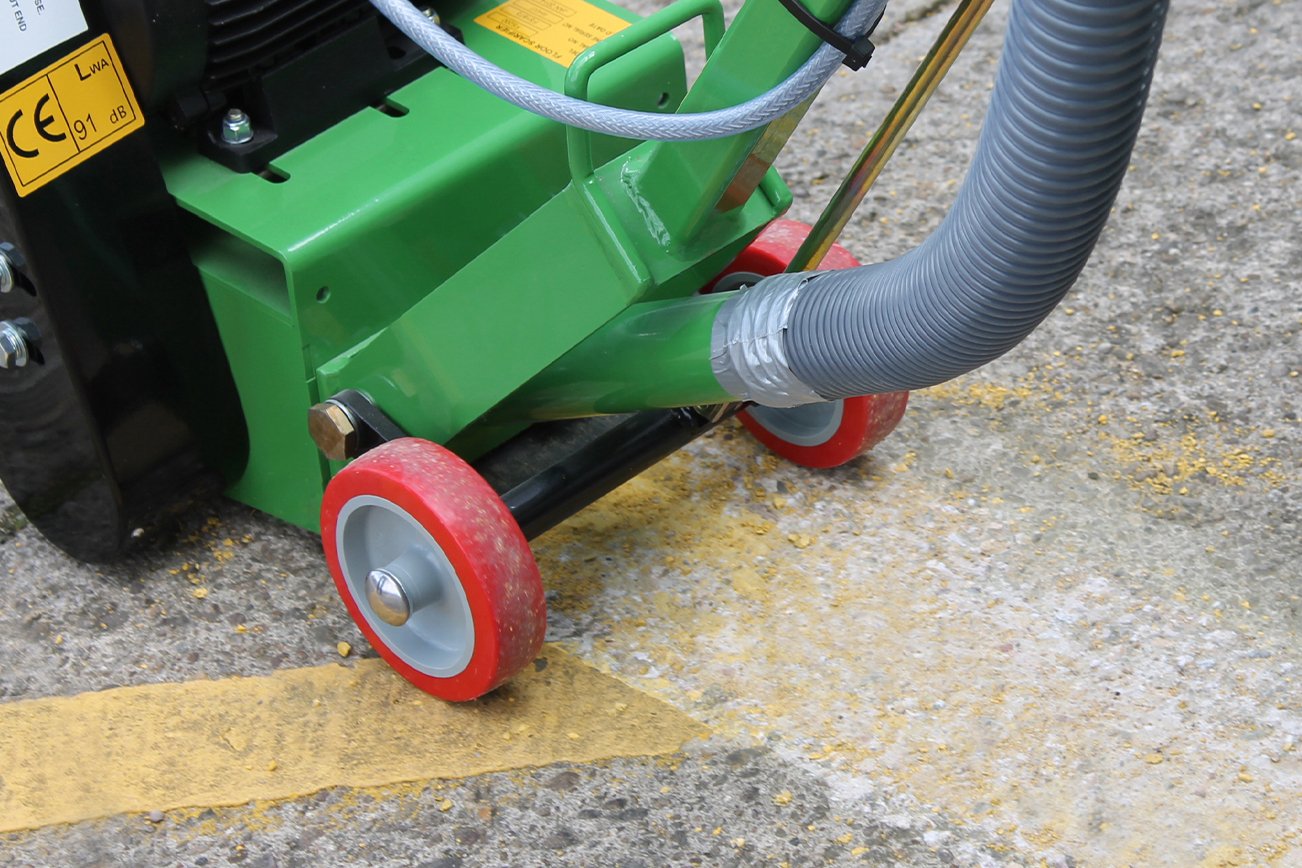

Removing Thermoplastic Lines

Removing Roof Chippings

Removing Ice Deposits

Grooving

Reducing Levels

Removing Coatings

Videos

Compatible Items

TCT Drum

Drum PLANE200-026 Flail 5pt PLANE200-045

For traffic markings removal, stone surface cleaning, concrete grooving, heaving milling of concrete, scabbling, cleaning and roughening concrete or asphalt.

Milling Drum

Drum PLANE200-028 Flail PLANE200-052

For removal of thermoplastic line markings, Bitumous and rubber deposits, epoxy coatings and cementitious screeds in excess of 2mm.

Star Drum

Drum PLANE200-027 Flail PLANE200-048

For cleaning concrete laitance, de-scaling steel, de-rusting, general cleaning, paint removal, cleaning oil & grease deposits & mill scale removal.

Beam Drum

Drum PLANE200-070 Flail PLANE200-047

For cleaning off paint without damage to concrete, de-scaling steel & removing oil & grease deposits.

Empty Drum

PLANE200-022

Harden steel drum with 12mm flail shafts.

Flail Shaft

PLANE200-050

12mm harden steel shaft suitable for 200 Planer Drum.

Spacers

PLANE250-036

Case hardened spacers to fit in between individual flails.

5kva Transformer

ELEC-011

For converting standard 240v electric into site safe 110v electric. Intermittent rating of 5000W – Continuous rating of 2500W.

110v 32amp Extension Cable

ELEC-015

14m complete with fitted plug and socket.

SPARES ARE AVAILABLE FOR GENERAL MAINTENANCE AND REPAIRS IF REQUIRED.
