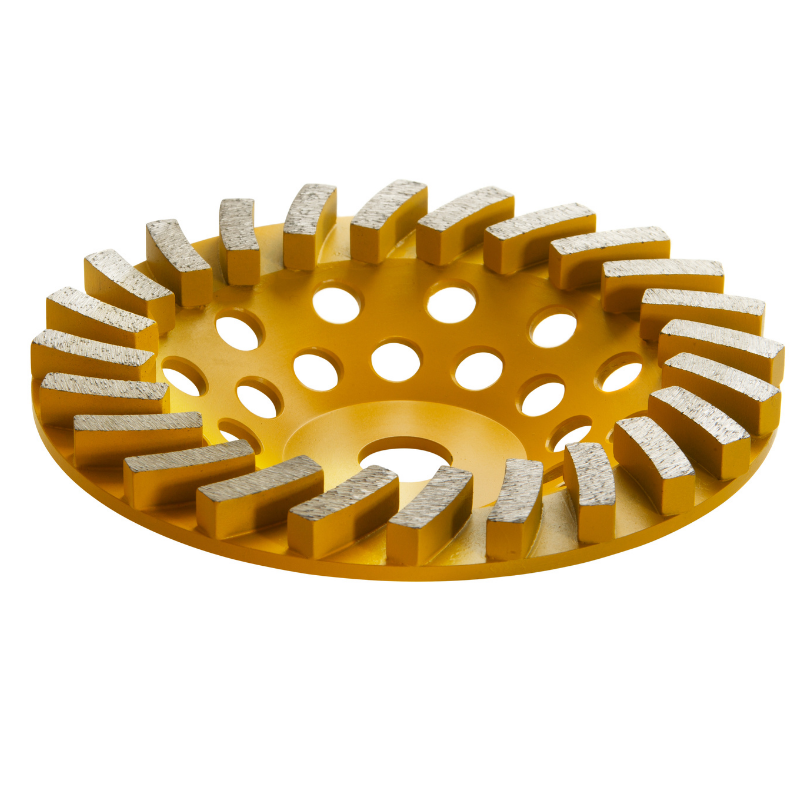

Diamond Disc
HAND-042
30/40 Grit 7″ / 178 mm Medium Bond – Yellow. A metal-bond diamond grinding disc versatile, general-purpose diamond grinding disc designed for effective floor preparation, edgework and surface smoothing. The medium bond offers a balanced cutting performance across a range of applications, helping to achieve a consistent finish when preparing edges to match the main floor.

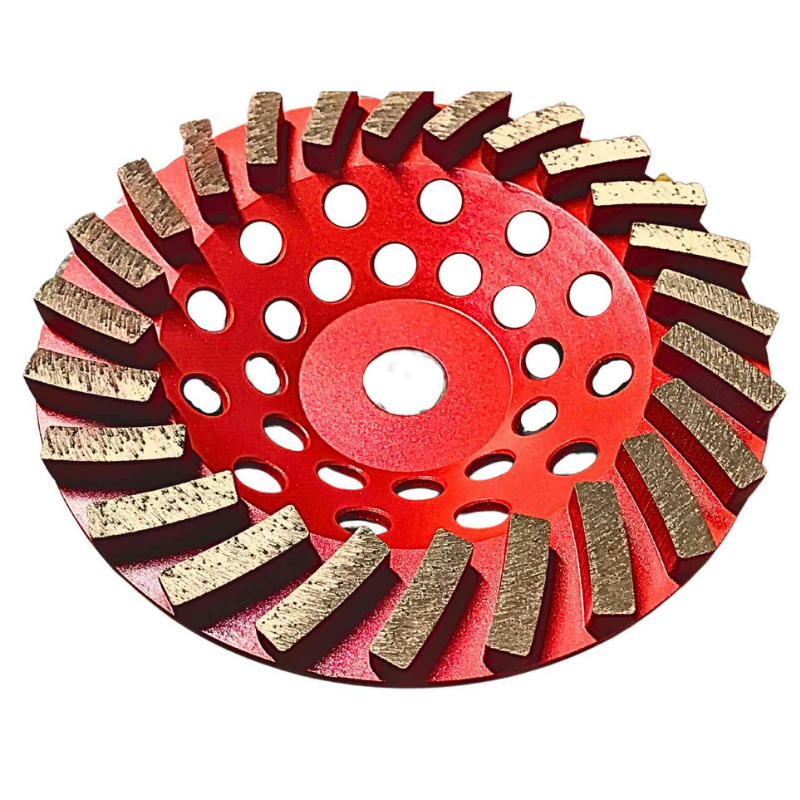

Diamond Disc
HAND-043
30/40 Grit 7″ / 178 mm Soft Bond – Red. Designed for grinding harder materials, the soft metal bond wears more readily to expose fresh diamond segments, helping maintain an effective cutting action. Ideal for efficient edge grinding and surface preparation on hard substrates, delivering a clean, consistent finish to complement the main floor.
Diamond Disc
HAND-044
30/40 Grit 7″ / 178 mm Hard Bond – Blue. Designed for grinding softer materials, the metal hard bond resists wear for longer, helping maintain effective diamond exposure when working on softer substrates. Ideal for efficient edge grinding and floor preparation, delivering a consistent finish to match the main floor.
Diamond Disc
HAND-137
80/100 Grit 7″/178mm White 24 segment diamond disc. Designed for finer grinding and surface finishing, this 24-segment metal-bond diamond disc features a higher diamond content, making it suitable for working on very hard surfaces. Ideal for refining the surface during edgework and achieving a smoother finish that closely matches the main floor.
12 Segment Diamond Disc
HAND-080
30/40 Grit 7″ / 178 mm – 30/40 Grit, 12 Segments Designed for general-purpose grinding and surface smoothing, this 12-segment 30/40 grit metal-bond diamond disc is particularly effective for following up PCD tooling when removing thicker adhesives and bitumen residues. The reduced number of segments provides more space between cutting areas, helping to minimise clogging when working with tacky coatings and adhesive residues.
T-Segment Diamond Disc
HAND-045
40/50 Grit 7″ / 178 mm Black – Medium Bond. Featuring 12 T-shaped diamond segments for increased cutting coverage, this metal-bond diamond disc is designed for efficient thin coating removal, concrete levelling and general floor preparation. The medium bond provides versatile grinding performance, making it ideal for effective edgework and achieving a consistent finish to match the main floor.
Single Row PCD with supporting segments
HAND-347
7″ / 178mm Single Row PCD Cup Wheel with supporting segments. It is engineered for efficient removal of tough coatings, adhesives, and other hard-to-remove materials.
6 Piece PCD Disc
HAND-046
6 piece 7″/178mm Polycrystalline Diamonds (PCD’s) are high-performance discs designed for the fast removal of hard and tacky surfaces, including heavy epoxy, coatings, mastics and glues. The 6 piece is designed for thicker coatings to be removed.

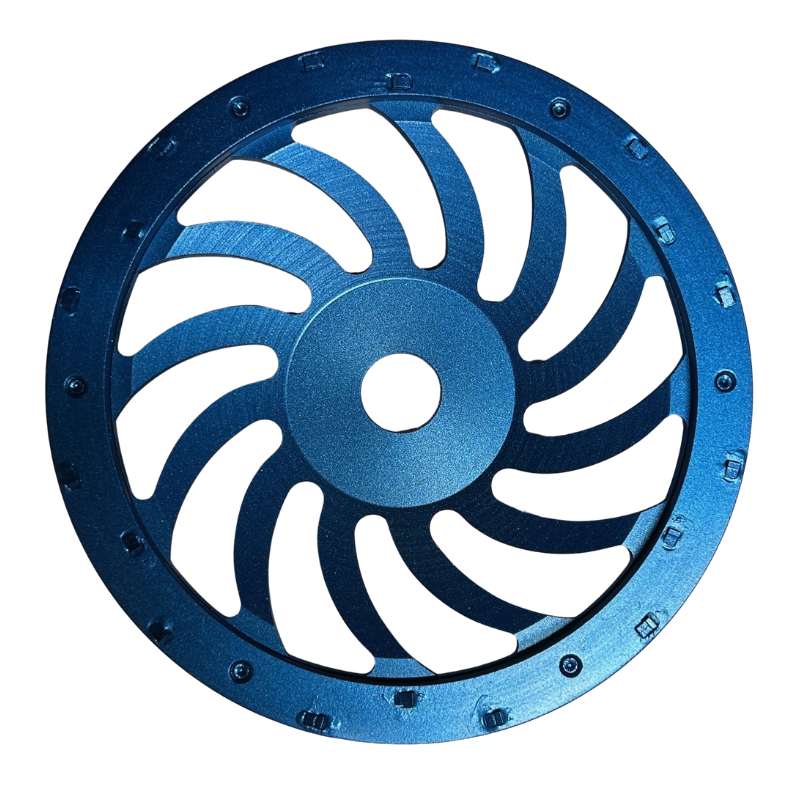

18 Piece PCD Disc
HAND-048
18 Piece 7″/178mm Polycrystalline Diamonds (PCD’s) are high-performance discs designed for the fast removal of hard and tacky surfaces, including heavy epoxy, coatings, mastics and glues. The 18 piece is designed for thinner coatings to be removed.
PCD Ring
HAND-047 / HAND-049
6-piece/ 8-piece PCD ring, replacement on 7″ PCD discs.

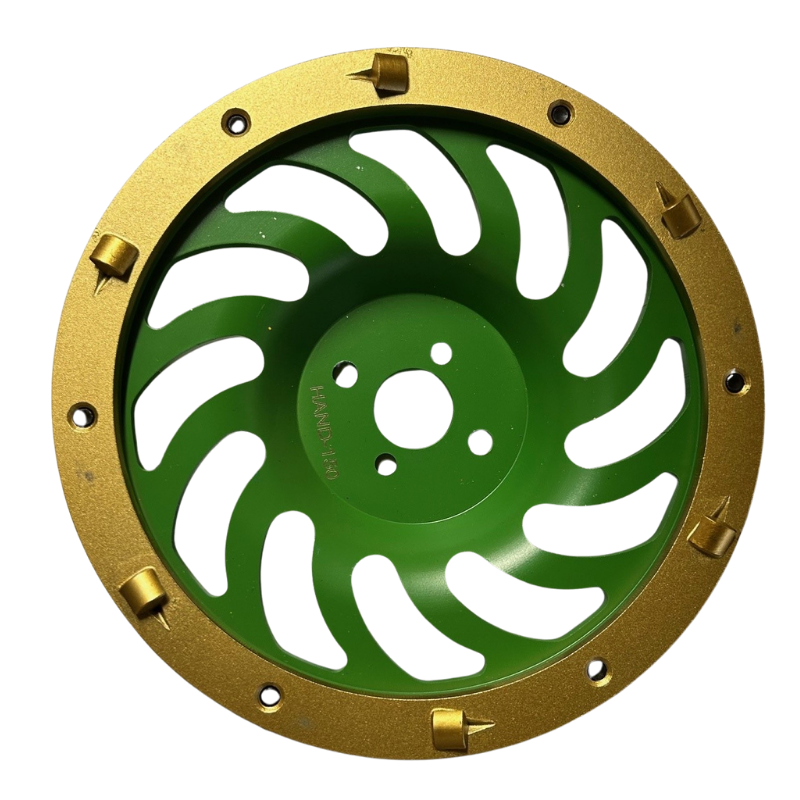

Chunky PCD Disc
HAND-150
7″ / 178mm The Single Row Chunky PCD Cup Wheel is engineered for efficient removal of tough coatings, adhesives, and other hard-to-remove materials. Advanced Polycrystalline Diamond (PCD) tips on the wheel scrapes rather than grinds, reducing heat build-up and preventing materials from becoming tacky.

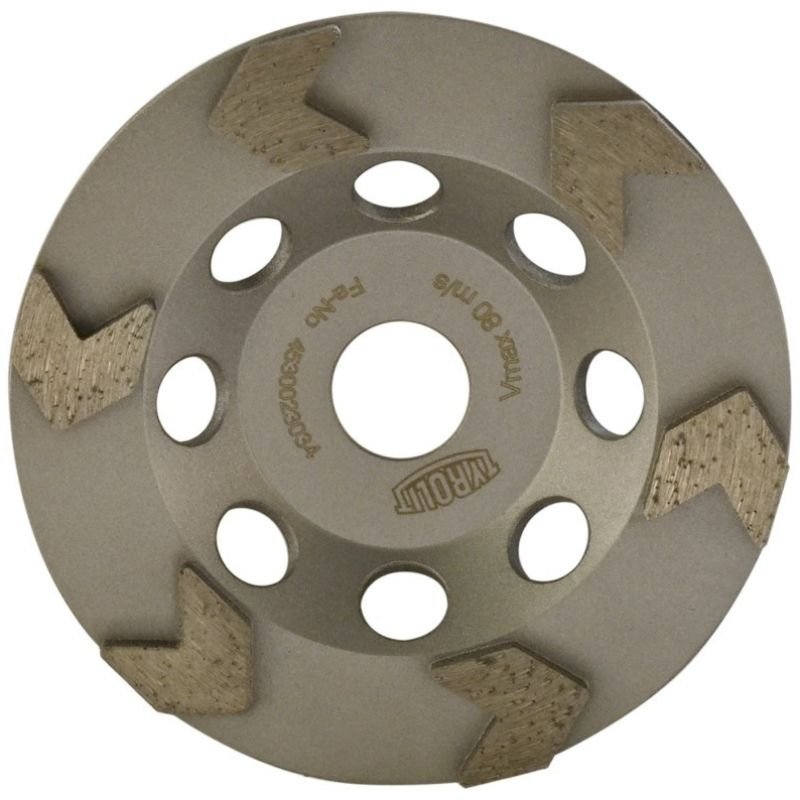

16 / 40 / 80 grit Diamond Cup Disc Arrow Segments
TYRHAND-016/017/018
7″ / 180mm Arrow Segments premium quality Metal Bond Diamond Cup Wheel for rough grinding hard to very hard concrete. Available in 16, 40 & 80 grit.
16 / 40 / 80 grit Diamond Cup Disc Double Row Segments
TYRHAND-004/005/006
7″ / 180mm Double Row Segments premium quality. Metal Bond Diamond Cup Wheel for rough grinding medium to hard concrete. Available in 16, 40 & 80 grit.
16 / 40 / 80 grit Diamond Cup Disc Turbo Segments
TYRHAND-010/011/012
7″ / 180mm Turbo Segments Premium quality. Metal Bond Diamond Cup Wheel for rough grinding soft concrete and screed. Available in 16, 40 & 80 grit.
Steel Dust Cowl
HAND-015
7″ / 178mm steel cowl for connection to a vacuum unit, for dust free operation and pollution control.
Metal Flip Front Cowl for 9" Hand Grinders
TYRHAND-019
Metal Flip Front Cowl for 9″ Hand Grinders is a robust, high-quality dust-control accessory designed for use with compatible 9″ (230 mm) hand grinders. Constructed from durable cast aluminium, it is built to withstand demanding grinding applications while providing effective dust and debris containment.
The flip-front design allows easy access when grinding along edges, making it particularly useful for floor preparation where access to the edge of the grinding surface is required.
When connected to a suitable dust extraction system, the cowl helps control airborne dust and grinding debris, contributing to a cleaner and safer working environment.

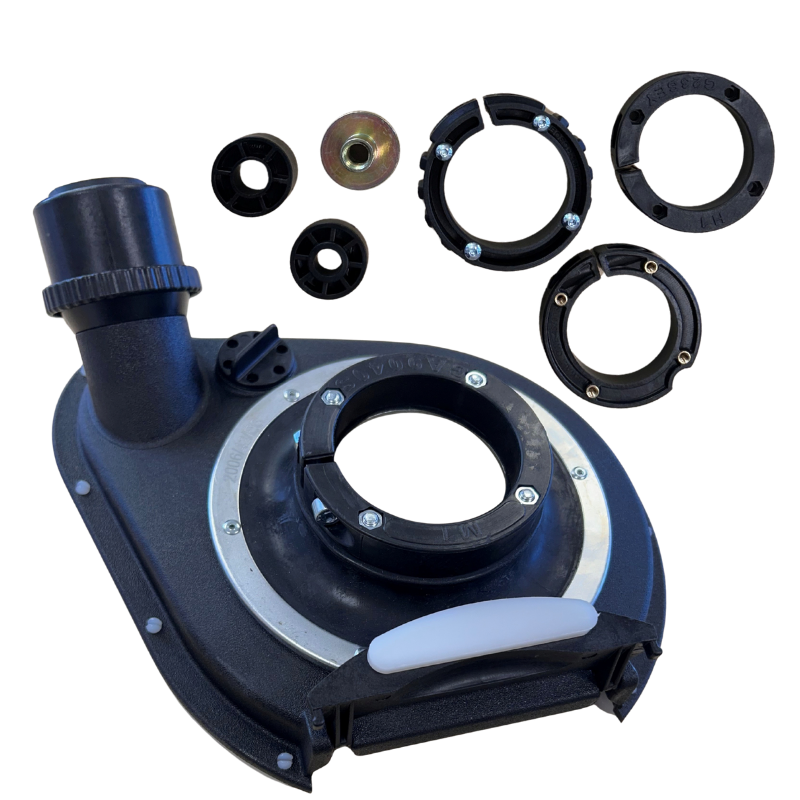

Composite Flip Front Cowl for 9" Hand Grinders
TYRHAND-020
Composite Flip Front Cowl for 9″ Hand Grinders is a robust, high-quality dust-control accessory designed for use with compatible 9″ (230 mm) hand grinders. Constructed from durable and light cast composite, it is built to withstand demanding grinding applications while providing effective dust and debris containment.
The flip-front design allows easy access when grinding along edges, making it particularly useful for floor preparation where access to the edge of the grinding surface is required.
When connected to a suitable dust extraction system, the cowl helps control airborne dust and grinding debris, contributing to a cleaner and safer working environment.
Cutting Blades
HAND-093
Diamond Cutting Blade (Standard) 7″/178mm for attachment to hand grinders to turn them into a hand chaser.
Cutting Shield
HAND-030
Dust extraction and protection is provided by fitting a shield to the hand tool which is then attached to an
industrial vacuum unit via hose.
Hose
DUCTING-007
50mm Clear PU Heavy Duty Antistatic Ducting is used to connect the dust extractor to equipment. Stronger and longer lasting than PVC hose.
Rubber Cone
VAC-019
Cone/Crevice Tool 50mm. Attached to cowl and Vacuum ducting.
110v 32amp Extension Cable
ELEC-015
14m complete with fitted plug and socket.
5Kva Transformer
ELEC-011
For converting standard 240v electric into site safe 110v electric. Intermittent rating of 5000W – Continuous rating of 2500W.
SPARES ARE AVAILABLE FOR GENERAL MAINTENANCE AND REPAIRS IF REQUIRED.
